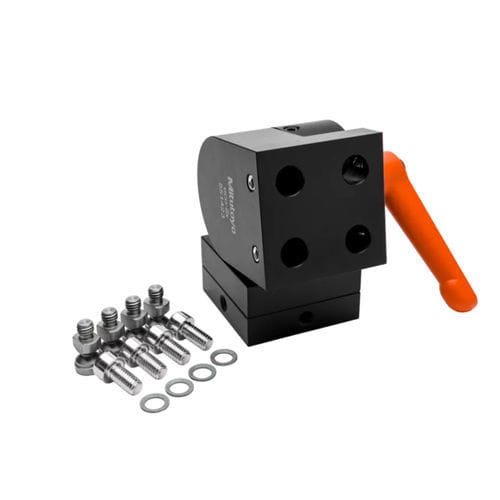

Swivel with blocking mechanism K551423
Add to favorites
Compare this product
Characteristics
- Options
- with blocking mechanism
Description
Product overview
Swivel joint for mounting and positioning of K551469 PinFlex shape clamping system. Easily adjust the rotational (360°) and angular position (180°) of K551469 with the 2 rotational axes. Secure the angle position with the clamping handle. Lock the rotational axis with M6 screws. The PinFlex clamp is attached securely by 4 clamping bolts that are screwed into K551469 and then tightened by clamping screws on the swivel joint side. Mounting materials included.
Features
Applications
Technical specifications
Swivel joint for mounting and positioning of K551469 PinFlex shape clamping system. Easily adjust the rotational (360°) and angular position (180°) of K551469 with the 2 rotational axes. Secure the angle position with the clamping handle. Lock the rotational axis with M6 screws. The PinFlex clamp is attached securely by 4 clamping bolts that are screwed into K551469 and then tightened by clamping screws on the swivel joint side. Mounting materials included.
Features
- Two rotational axes providing 360° rotation and 180° angular adjustment
- Angle position secured by clamping handle
- Rotational axis lockable with M6 screws
- PinFlex clamp attachment via 4 clamping bolts
- Mounting materials included for immediate installation
Applications
- CMM (coordinate measuring machines)
- PinFlex shape fixturing system and shape clamping
Technical specifications
- Mass: 1080 g
- Units per delivery: 1
- Length: 48 mm
- Width: 48 mm
- Height: 100 mm
- Thread for locking screws: M6
- Thread spacing / mounting pattern: 25 x 25 mm
- Product line: eco-fix, eco-fixplus, PinFlex
- Component type: Base component
- Scope of delivery: Fixing nut Ø10 mm (M6) with 7 mm washer (4 pcs), clamping screws M6 x 12 mm (4 pcs), swivel joint (1 pc)
