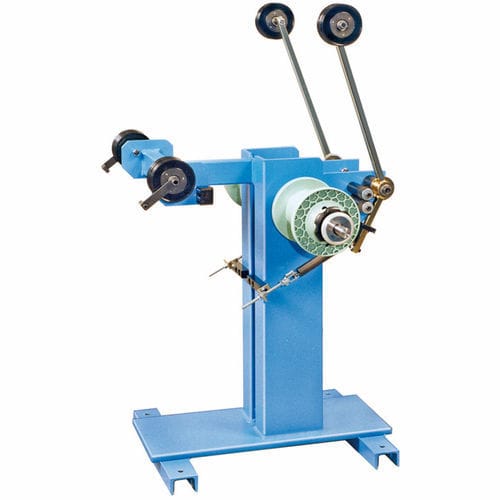

Wire payoff stand AT-160/355YT

manual

This Tangential Douple Payoff is equipped with an adjustable hysteresis brake for manual tension adjusting. Also there are dancer accumulators for start/stop use. The pulleys on the dancer accumulator are of steel material or of ceramic with plastic flanges dependable on the application. There are cross rollers mounted at the input of the dancers. Flange Ø: 200 - 355 mm Multiwire: 3 x 0,1 - 12 x 0,25 Ø Cu-, Al wire: 0,3 -1,9 mm Ø Steelwire hard: max. 0,8 mm Ø Steelwire soft: max. 1,5 mm Wire speed: max. 250 m/min Wire tension: min. 4, max. 18 N
