Chain conveyor

for the wood industrychipfor wood

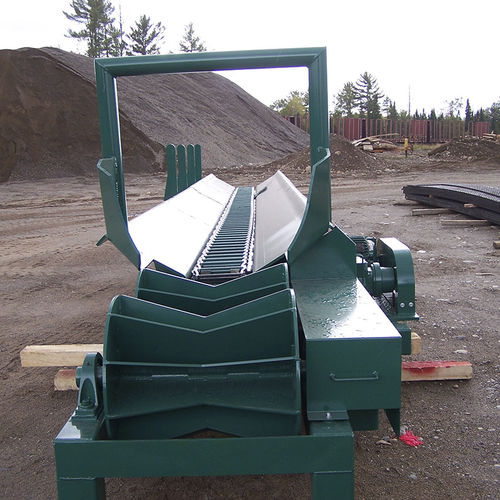

These heavy-duty log conveyors are used in a variety of applications, including sawmills, chip plants and log merchandizing systems. Morbark offers conveyors built from 0.5" (a.3 cm) or 0.62" (1.6 cm) formed steel plate in a variety of lengths and widths. Several different drives are available, as well as automatic or manual kickers. DRIVE - 2000 Series hydraulic drive to handle up to 30' (9.1 m) conveyors CHAIN - 13" (33 cm) wide WD-110 conveyor chain CONSTRUCTION - Conveyor constructed from 0.5" (1.3 cm) formed steel plate with 0.4" (1 cm) gussets every 4' (1.2 m) CHAIN BED - 1" x 2" (2.5 cm x 5.1 cm) cross bars welded under chain bed every 2' (0.6 m). Chain bed is 0.8" (1.9 cm) AR plate KICKER OPTIONS - 2-, 3-, or 4-arm kickers, automatic or manual, can be installed either right or left LEG PACKAGES - 2 sets of legs for 20'-25' (6.1 m - 7.6 m) conveyor 3 sets of legs for 26'-40' (7.9 m - 12.2 m) conveyor 4 sets of legs for 41'-65' (12.5 m - 19.8 m) conveyor 5 sets of legs for 66'-80' (20.1 m - 24.4 m) conveyor OTHER OPTIONS - Longer or shorter trough-type conveyor with WD-110 chain 13" (33 cm) track-type chain in lieu of standard WD-110 conveyor chain 13" x 0.8" (33 cm x 1.9 cm) UHMW Duralite conveyor chain wear strip 19" x 0.8" (48.3 cm x 1.9 cm) UHMW Duralite conveyor chain wear strip 2000 Series jackshaft reduction drive for conveyors 35' - 65' (10.7 m - 19.8 m) in length
