Characteristics
- Control voltage
- DC
- Function
- power
- Terminal strip
- plug-in
- Other characteristics
- bistable
- Switching current
Max.: 10 A
Min.: 1 A
Description

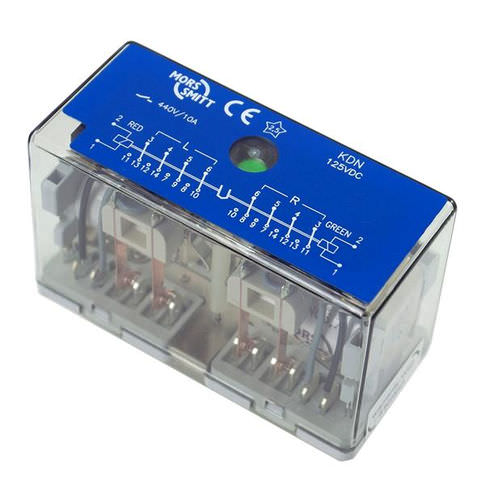

Heavy duty latching / bisable relay for demanding applications. Equipped with mechanical latch and positon indicator. Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.
Plug in relay
Smitt-style pinning
8 C/O contacts
Rated load 1A /110V DC1 , 10A/230V AC1
Coil voltages 12...220 VDC, 24...380 VAC
AC&DC coil
Continuous coil energization permitted
Integrated 'snap-lock' retaining clip
Dimensions 40 x 88 x 56 mm
See the datasheet in the download section for all specification and options.
See the accessories section for all suitable relay sockets and accessories.
