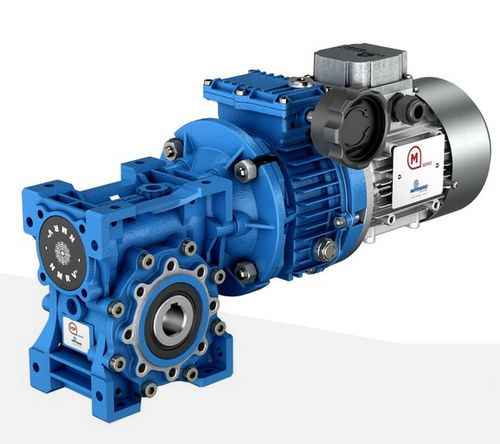

Industrial variable-speed drive S+NMRV

With great reliability developed over 45 years of service, the VAR series motovariator-gear reducer is a viable alternative to electronic drives and is easy to use and maintain. They are available with variators in cast iron from size 003 to 100 combined with NMRV worm gear reducers from size 030 to 150, in aluminium in sizes 002, 005 and 010 combined with NMRV worm gear reducers from size 030 to 130. Characteristics S+NMRV S combined with worm gear reducer: 030-040-050-063-075-090-105-110-130-150 Cases in G200 grey cast iron for high strength and optimized with FEM analysis Torque value max 2.670 Nm Painted with RAL 5010 blue epoxy-polyester powder TXF+NMRV TXF combined with worm gear reducer: 030-040-050-063-075-090-105-110-130 Cases in die-cast aluminium alloy Torque value max 1.100 Nm Painted with RAL 5010 blue epoxy-polyester powder
