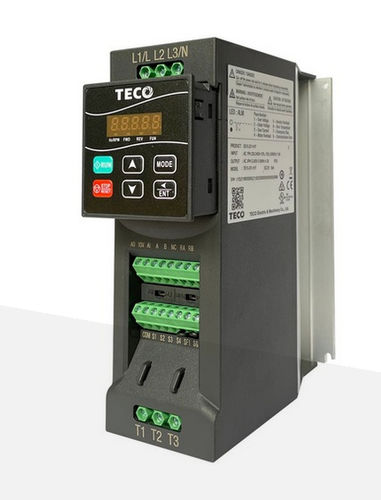

Motor driver S510

With a compact and space-saving design, S510 is the smallest and most cost-effective Teco inverter of the 510 range. Ideal for speed control, the S510 inverter provides the application versatility to meet the requests of OEMs and end users demanding a solution that is compact, easy to use and program, including an integrated SAFE TORQUE OFF (STO). The S510 frequency converter is available in 2, single-phase and three-phase sizes, with a book-style design and rated power of 3.7 kW. All versions include the EMC filter and the integrated Modbus. Characteristics Single-phase, 200 / 240 V from 0.4 to 2.2 kW Three-phase, 400 / 480 V from 0.75 to 3.7 kW All S510 drives include an integrated SAFE TORQUE OFF circuit The S510 drives are fitted with an integrated EMC filter for all versions. RJ45 port and 2 terminals for chain connections for integrated ModBus communication. The optional DIN mount modules of the 510 range enable the S510 drive to connect to Ethernet TCP/IP, ProfiNet, Ethercat, Profibus, CanBus and DeviceNet. The optional keypad with a 4-digit display offers the integrated digital potentiometer for motor speed control.
