Shock data-logger

USBwithout displaystand-alone

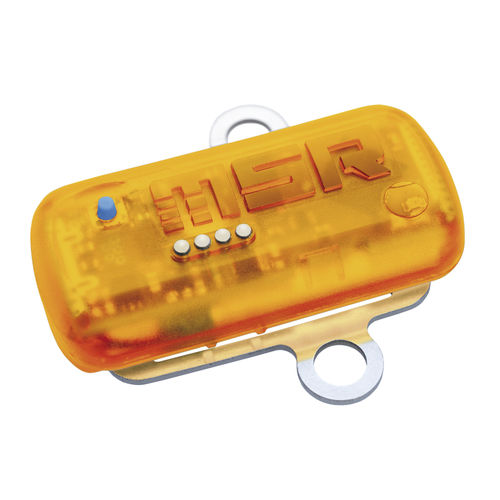

The MSR175 stand-alone data logger uses high-resolution sensors to continuously record what happens to your goods during transportation. The logger data can then be analysed very accurately – be it in order to ascertain damage or to improve transport packaging – using the “MSR ShockViewer” software. Collecting data for secure transportation MSR175 shock transportation data logger: Shock monitoring over a period of several months ±15 g/±100 g; storage capacity of two million measured values; up to 5,000 measurements/s; temperature, humidity, pressure and light sensors; MSR ShockViewer software The two 3-axis acceleration sensors integrated in the MSR175 have working ranges of ±15 g and ±100 g. They record shocks and jolts at a measurement frequency of up to 5,000 measurements per second. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for more than 1,000 shocks. In addition, the MSR175 data logger measures and records temperature profiles from -20° to +65 °C. Additionally, a second type variant of this data logger is available with internal humidity, pressure and light sensors. Easy-to-use pc software: Thanks to the MSR175 Dashboard software, preparing the MSR175 for its mission and reading its measured data via USB is very easy. The data can then be analysed and clearly presented in a chart using the intuitive MSR ShockViewer software which is included in the MSR175 software package (61.3 MB). In the process, you can analyse critical events at a glance and document them conclusively in a report; a frequency analysis facilitates identifying the causes of shock events.
