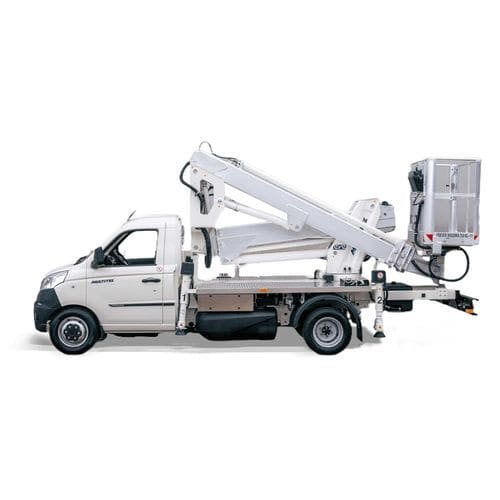

Truck-mounted articulated boom lift MXE 170

gasolineLPGfor construction

The Multitel Pagliero truck-mounted articulated platforms come in a wide range of heights, outreach and load capacity levels. The various stabilizing methods, in addition to the rotation of the self-levelling platform, ensure maximum precision when working at a height while maintaining the highest safety standards. Articulated aerial platform mounted on Piaggio Porter NP6 Long Range with a GVW of 2,800 kg, with a maximum working height of 17,1 m, maximum horizontal outreach of 6 m, and platform capacity of 250 kg. The UP & OVER is 6.8 m, the turret rotation of 400° and the self-leveling 1.20 x 0.70 m basket with 50°+50° rotation, allow the operator to get around any obstacles and precisely position himself at the work area. Its light weight allows it to move over delicate surfaces, and its length of 5,850 mm and height of only 2,550 mm allows it to access narrow streets in the city or historic centers. The stabilization of only 1,800 mm ground print ensures easy positioning and use in tight spaces. LPG and gasoline fueling ensures cost savings and less pollution; it allows urban circulation at all hours of the day, without the constraints due to traffic blocks. The start/stop system in the basket makes efficient use of the platform and optimizes fuel consumption. With the moment sensing limiting device, the outreach is load-dependent and ensures safe movement. EVE, Multitel Pagliero’s evolved electronics, ensures linearity and smoothness of vertical and horizontal movements. Proportional electro-hydraulic controls regulate the speed of extending the sections, elevation, descent, and rotation from control panels on the platform and at ground level.
