Lamp LLLAMP

LED

Product overview

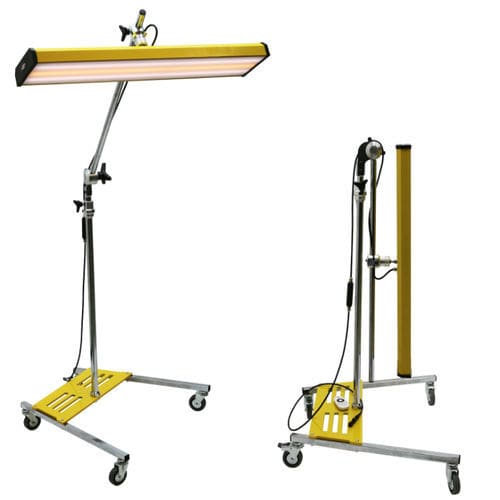

LLLAMP (p/n. 31373) is a LED inspection lamp designed to detect dents and minor surface damages on vehicle bodywork (hail, small dents) and to illuminate hidden or hard-to-reach work areas. The telescopic arm with a 360° joint and foldable design allow flexible positioning and compact storage for transport.

General features
LLLAMP is intended for professional car-body repair on steel and aluminium surfaces, including hot-melt glue work, PDR (paintless dent repair) and repairs using suction cups and dent levers.

LAMP HOUSING

• Housing in Stainless Steel INOX AISI 304 with chrome-plated tubular structure; low power consumption LED strips
• Modular LED configuration: 2 or 3 strips; selectable Cold White (CW) or Warm White (WW)
• Optical output options: Cold White (CW) ~3000 lumen; Warm White (WW) ~6000 lumen
• Reinforced lamp housing with two rubber side protections and polycarbonate opaline glass

BASE LAMP

• Mobile base with 4 swivel wheels (2 with brakes) for easy positioning
• Stable INOX body enables use in any orientation without risk of overturning

REMOTE CONTROL

• On/off and full-range dimming via remote control
• Operable from DC 12 V or AC 230 V mains (battery and AC/DC versions available on request)

Applications

• Car body repair on steel and aluminium panels
• Hot-melt glue repairs
• PDR (Paintless Dent Repair)
• Repairs using suction cups and dent removal levers

Documentation

• Usage and demonstration video available
• Brochure available in English–Italian and English–French on request

Technical specifications

• Product code: p/n. 31373
• Model name: LLLAMP
• Housing material: Stainless Steel INOX AISI 304, chrome plated
• Telescopic arm with 360° joint; fully foldable for shipment/storage
• LED configuration: 2 or 3 strips
• Light output: Cold White (CW) ~3000 lm; Warm White (WW) ~6000 lm
• Protective features: two rubber side protections; polycarbonate opaline glass
• Base: 4 swivel wheels (2 with brakes); stable INOX body
• Control: remote control with dimming
• Power supply: DC 12 V or AC 230 V (battery and AC/DC on request)
