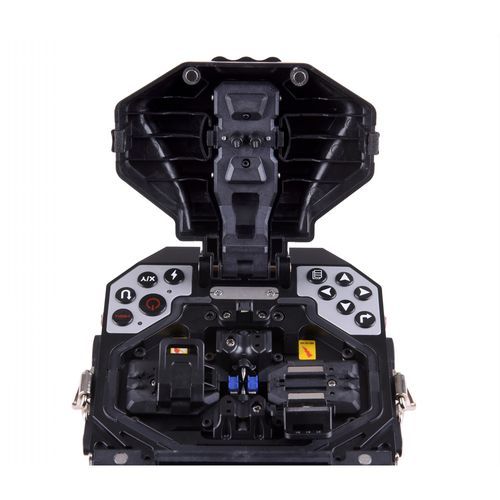

Fiber optic splicer HOEA3500

1>Quick splicing time: 8-9 seconds 2>Quick heating time: 15-25 seconds 3>More Portable design Applicable Fibers - SM(ITU-T G.652), MM(ITU-T G.651), NZ-DS(ITU-T G.653), NZDS (ITU-T G.655),EDF, Pigtail, Cable (rubber-insulated wire), others(including G.657 & G.651) SC/LC/FC connector (optional function) Average Splice Loss - 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) Return Loss - ≥60dB Tension Test - 2.0N(200gf)(Standard) Typical splicing time - 8 -9 seconds Typical heating time - 15-25 seconds Splicing Program - 50 groups Protection Sleeve Length - 20mm, 40mm, 60mm Operating Language - Chinese, English, French, Portuguese, Spanish Operating Conditions - -25~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) Power Supply - AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 12V, 5.2AH Monitor - 4.3 inches high resolution colorful LCD display Fiber Image Magnification - X or Y axis Separately views 420 times magnification, or Simultaneously 220 times Storage of Splice Result - 6,000 groups of latest splice results Splicing Mode - Auto & Manual & Full Auto Dimensions - 120(W)*120(D)*130(H)mm
