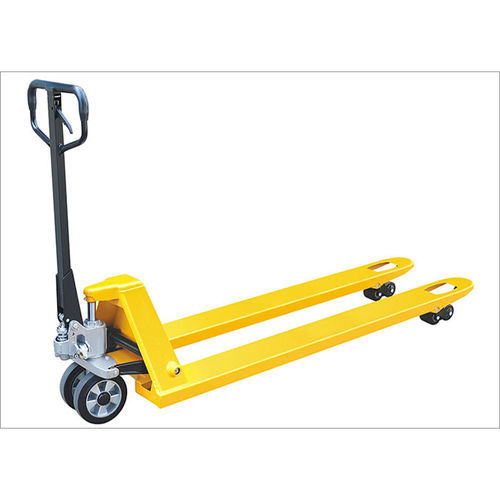

Hand pallet truck

Add to favorites

Compare this product

Go to the NANJING TOCO WAREHOUSE EQUIPMENT CO., LTD. website for more information

Characteristics

Operation

hand

Load

2,500 kg, 3,000 kg
(5,511.56 lb, 6,613.87 lb)

Lifting height

190 mm, 200 mm
(7.5 in, 7.9 in)

Fork length

1,100 mm, 1,150 mm, 1,220 mm
(43.31 in, 45.28 in, 48.03 in)

Fork width

520 mm, 550 mm, 685 mm
(20.5 in, 21.7 in, 27 in)

Weight

Min.: 63 kg
(138.89 lb)

Max.: 75 kg
(165.35 lb)

Description

• Most standard and popular model with capacity 2500-3500kgs. • Supporting base: the new type is thicker in case of bending problems. • Forks: the thickness of the new type is 53mm to make strength increased. • With Copping Supporting NOG and strengthening ribbing under top triangle cover. • Complete pump deisgn with reliable leak-proof pump eliminating maintenance and extending the service time. • 210 steering arc, and small turning radius. • Fork lowering speed is controllable, operated by hand control and foot pedal. • Ergonomic rubber wapped handle, which is confortable and convenient to operate. • Entry & Exit roller, more free travel. • Equipped with over-load value, to long service time. • 3 position hand control, Raise, Lower and Neutral. • 12 lubrication grease nipples on all movable parts for easy maintenance. • Adjustable pump cap ensures long service life.
