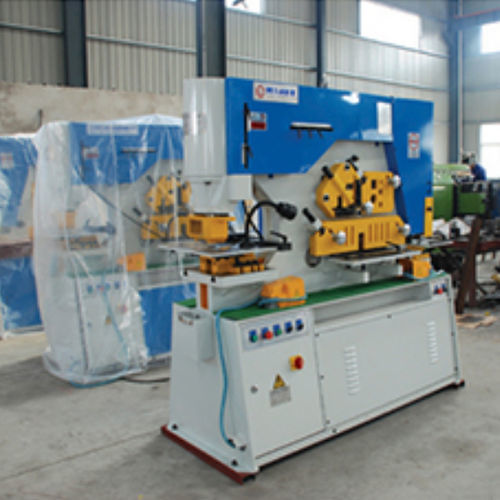

Bar ironworker Q35Y-12sheet metalshearnotching
Add to favorites
Compare this product
Characteristics
- Product handled
- bar, sheet metal
- Associated function
- shear, notching, bending
- Other characteristics
- angle
- Pressing force
Max.: 1,372.9 kN
Min.: 588.4 kN
- Engine power
4 kW, 5.5 kW, 7.5 kW, 11 kW
(5.44 hp, 7.48 hp, 10.2 hp, 14.96 hp)- Plate thickness
Max.: 30 mm
(1.18 in)Min.: 12 mm
(0.47 in)
Description
Iron Worker
♦ Bolted and welded steel mono-block construction
♦ 2-cylinder version (simultaneous working) with 5 station: hole punching; plate shearing; angle shearing; round/square bar chopping; notching
♦ Adjustable stroke complete with rules at punch and shear end
♦ Swing-away punch stripper
♦ 2-hand moveable foot pedals
♦ High quality punch tooling and shear blades
♦ Press brake tool — bending (optional)
♦ T bar/ Joist/ Channel chopping (optional)
