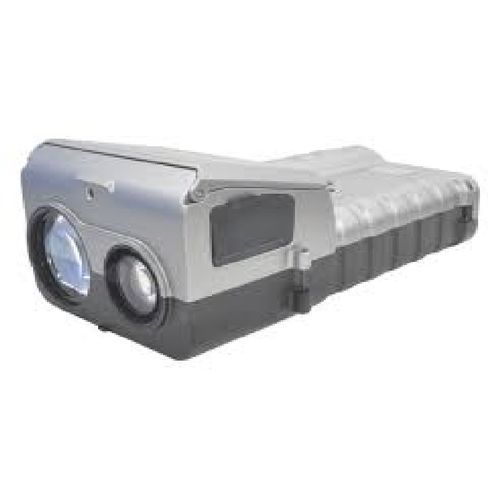

Digital camera TD100

for research and developmentlaboratorycorona and arcing detection

UV camera system as innovative diagnostic device for accurately peak discharge phenomena recognition and corona discharges just in time Corona cameras are used to pinpoint corona sources in power plants, electrical utilities, HV labs, research institutes, HV railway. • Ideal tool to detect and pinpoint flash-arc corona, arcing partial discharge • Image Type: Monochrome video • Minimum UV Sensitivity: 3 x 10-18watt/cm² • Minimum Discharge Detection: 1.5pC @ 8 meters • Built-in GPS as precise positioning device • Spectral range UV: 240 ～ 280 nm • Field of View: H x V 5.5° × 4.0° • Focus: auto and manual for UV & visible channels • Focus distance: 2m～∞ • Detector Life Span: no degradation • Frequency: 50Hz • Large SD-Card for video and pictures storage Corona Camera UVSee irPOD-TD100 is an innovative NDT – Non Destructive Testing equipment that detects, pinpoints and documents flash-arc corona and arcing partial discharge camera. Being with high sensitivity UVSee TD90 is a power tool to detect UV emission in full daylight with high signals from faraway and nearby sources. UVSee irPOD-TD100 is an ideal predictive maintenance device (PPM) for overhead transmission lines and high voltage substations. UVSee irPOD-TD100 is the second generation of Solar Blind UV imaging system with an emphasis on high performance functionality and easy operation; it is widely used in Transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, HV panel inspection, service providers, laboratories and more. • High sensitivity to UV signals • Precise location of corona emitting sources • Auto focus of UV and visible channels
