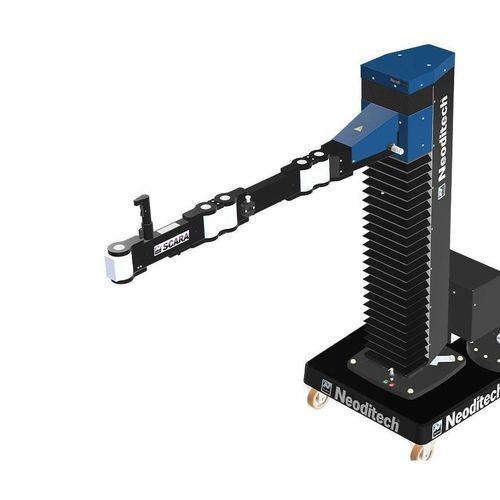

SCARA robot SCARA

4-axistransferpick-and-place

Overview NEODITECH’s SCARA handling arm is an ergonomic industrial manipulator designed to assist operators and move loads up to 100 kg with high repeatability and precision. Its smooth kinematics enable pick-and-place operations in confined spaces, including machine interiors. The arm supports off-center gripping and offers high integration flexibility to improve process flow while reducing operator strain.

Key benefits and features

• Capacity range covering light precise handling to heavy-duty use via SCARA PARTS and SCARA TITAN configurations.
• High positioning accuracy and fluid motion for repetitive and delicate tasks.
• Mobile deployment: can be mounted on an electric mobile base for rapid transfer between workstations.
• Optional brakes to lock loads in space and ensure safe operations.

Applications

• Pick-and-place with frontal gripping
• Handling inside confined or enclosed areas (can enter machine interiors)
• Mounting and assembly of delicate components requiring stability
• Handling asymmetrical parts using off-center gripping

Integration & adaptability Designed for easy integration: no permanent floor fixation required, mobile use across several stations, optional locking brakes. NEODITECH provides customised end-effectors (manual or pneumatic clamps, magnets, suction cups, bespoke grippers) to match specific process constraints and guarantee seamless integration.

SCARA variants mentioned

• SCARA PARTS — optimized for light and precise handling (approx. up to 50 kg).
• SCARA TITAN — configured for the heaviest components (approx. up to 100 kg).

Mobility & stroke Available on a mobile base: typical action radius up to 2 m and vertical stroke up to 1.20 m; electric mobile base option provides autonomous movement between stations and smooth handling across locations.

Accessories & tooling

• Manual or pneumatic clamps for quick, reliable gripping
• Magnets for steel parts handling
• Suction cups for fragile items and large surfaces
• Custom grippers and dedicated design support for bespoke tooling

Benefits for operators & process Improves workstation ergonomics and reduces musculoskeletal risk while maintaining throughput and handling quality. One mobile arm can serve multiple stations to optimize floor space and resources.

Technical specifications

• Maximum handling capacity: up to 100 kg (SCARA TITAN variant)
• Light/precision variant capacity: approx. 50 kg (SCARA PARTS)
• Action radius: up to 2 m (typical)
• Vertical stroke: up to 1.20 m (typical)
• Mobile electric base option: autonomous transfer between workstations
• Optional brakes: lock the load in space to prevent unwanted movement
• Gripping modes: frontal grip and off-center gripping for asymmetrical parts
• Available end-effectors: manual clamps, pneumatic clamps, magnets, suction cups, bespoke grippers
• Designed for integration in restricted spaces, including machine interiors
