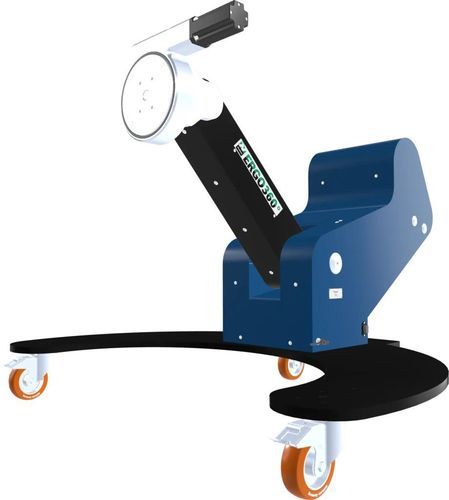

Electric positioner ERGO360°

rotarypan-tiltmulti-axis

Overview
NEODITECH ERGO360° is an ergonomic work positioner for assembly, wiring and quality-control tasks. It supports loads up to 200 kg and offers multi-axis orientation to present the part to the operator instead of forcing the operator to adopt awkward postures.

Ergonomics
The unit adapts the workpiece position to operator requirements to reduce repetitive strain and awkward postures. Electric actuation and an intuitive control concept let the operator raise, lower, rotate and tilt the part for safer, more comfortable handling without manual repositioning.

Movement & Control

• 360° rotation on crown for full access to horizontal faces
• Tilt range up to 90° to present lower faces or create a flat working plane
• Smooth, precise movements driven by electric actuators
• Touch-sensitive control console with ergonomic layout
• Up to 15 memorized positions for rapid indexing and repeatability

Design & Installation

• Half-moon base for unobstructed access to the workpiece
• Compact and mobile design to optimize floor space and access
• Industrial-grade construction suitable for production environments (French manufacturing)

Fields of application

• Multi-face component assembly in mechanical and electronics production
• Electrical wiring and cabinet assembly requiring access to connection areas
• Deburring, finishing and precision operations by adjusting part orientation

Benefits

• Improves operator safety and productivity by reducing awkward postures
• Supports ergonomic, repeatable positioning for precision tasks
• Enables single-operator handling of heavy parts and reduces need for lifting partners

Technical specifications

• Maximum load capacity: 200 kg
• Rotation: 360° on crown
• Tilt range: up to 90°
• Motion actuation: electric actuators
• Control interface: touch-sensitive console with up to 15 memorized positions
• Base: half-moon base; mobile or fixed installation options
• Primary applications: assembly, quality control, wiring access, deburring/finishing
