3-axis CNC machining center HM T series
horizontaltraveling-column

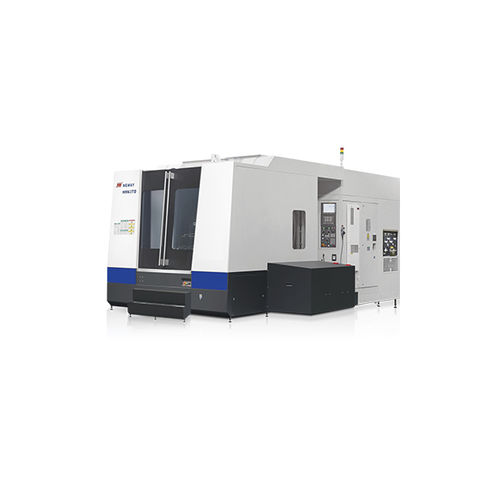

3-axis CNC machining center - HM T series - NEWAY CNC EQUIPMENT (SUZHOU) CO., LTD - horizontal / traveling-column
3-axis CNC machining center - HM T series - NEWAY CNC EQUIPMENT (SUZHOU) CO., LTD - horizontal / traveling-column
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Structure
traveling-column
X travel

Max.: 2,200 mm
(86.61 in)

Min.: 750 mm
(29.53 in)

Y travel

Max.: 1,500 mm
(59.06 in)

Min.: 600 mm
(23.62 in)

Z travel

Max.: 1,500 mm
(59.06 in)

Min.: 650 mm
(25.59 in)

Power

Max.: 26 kW
(35.35 hp)

Min.: 11 kW
(14.96 hp)

Description

The main structure of the machine is reversed T type, with full moving column structure, large span design, high rigidity. The worktable and tools can be changed automatically in machining. By one time clamping, the various process, including milling, drilling, reaming, boring, tapping, et conn the four faces can be finished. Modern control concept, compact structure design, guarantee high efficiency and high precision in the single part or small & middle batch parts producing and suitable for complex machining of box type parts.
