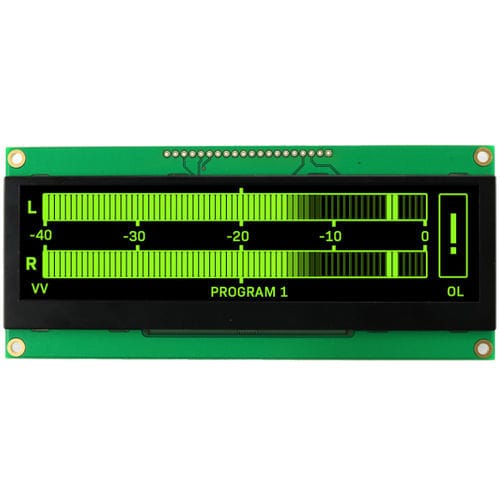

OLED display NHD-5.5-25664UCG3

monochromegraphic256 x 64

This 5.5 inch diagonal size graphic OLED module features 256x64 resolution in vibrant green pixels set against a deep black background. The OLED display technology is self-illuminating and engineered to provide high visibility, ensuring good readability from any angle in different environments. With this OLED, you can expect top speed 10μsec response times and 10,000:1 high contrast ratio. This passive-matrix display was engineered with 8-bit 6800/8080 Parallel interface or SPI options and is fully compatible with Arduino, allowing seamless integration with many different electronic systems for a wide range of applications. Designed to withstand extreme operating conditions, the NHD-5.5-25664UCG3 OLED display operates exceptionally when used within a temperature range from -40 to 85 degrees Celsius. The PMOLED has a built-in SSD1322 controller, interface mode select jumpers, user configurable power options, and only requires a low 3.3V supply voltage for operation. There are 4 mounting holes spaced at rack unit standards and a 20-pin thru-hole connection on the PCB. Our displays are all RoHS compliant and adhere to strict environmental and safety standards. OLED Product Specifications Viewing Area L x W: - 136.9mm x 35.1mm Active Area L x W: - 135.65mm x 33.89mm Supply Voltage: - 3.3V Interface: - Serial / Parallel Compatibility: - Arduino and similar development boards Controller Type: - SSD1322 Connection Type: - 1x20 thru hole with 2.54mm pitch OLED Custom Solutions Cable Customization Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
