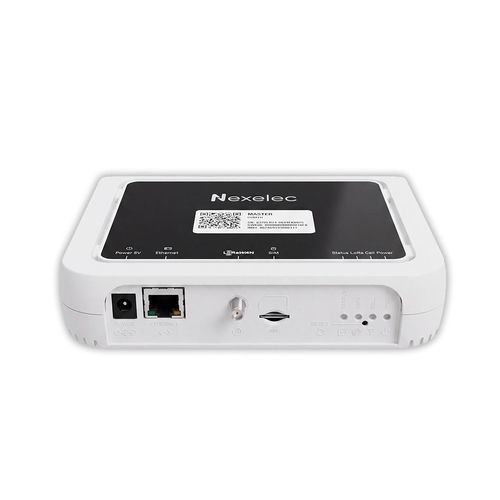

IoT gateway MASTER CORE

cybersecurityBACnetLoRaWAN

Overview
MASTER CORE centralizes remote meter reading, monitoring and control of a building’s LoRaWAN equipment. Collected LoRaWAN data is converted into standardized BACnet/IP points that can be consumed directly by PLCs and building management systems (BMS). MASTER CORE integrates a LoRaWAN gateway, BACnet/IP connectivity and an IoT monitoring platform (NAVIXIS) in a compact, ready-to-install unit.

Key benefits

• Connected — Remote meter reading and remote control of LoRaWAN devices with direct BACnet/IP connection to BMS and PLCs.
• Quick deployment — Plug in the gateway, scan the QR code and set up the LoRaWAN network in minutes.
• Secure — Protected data handling and secure built-in 4G LTE connection with multi-carrier SIM; compliant with European RED cybersecurity requirements.

Main features

• LoRaWAN → BACnet/IP conversion — LoRaWAN payloads are automatically mapped to standardized BACnet points for use by BACnet/IP-compatible controllers and existing BMS architectures.
• Compatibility — Works with a wide range of LoRaWAN devices for energy management, indoor air quality, heating, security and general building monitoring.
• Multiple connectivity options — LoRaWAN radio, BACnet/IP over Ethernet, secure built-in 4G LTE (multi-carrier SIM), and Ethernet integration with PLC networks.
• Project-ready design — Simple installation, multiple connectivity choices and support for multi-site deployments.
• Usable data — Sensor information is contextualized, historized and made available for analysis, monitoring and optimisation.
• NAVIXIS IoT supervision — Centralised visualization and control of LoRaWAN gateways and devices from a single interface.
• Network management — Monitoring of signal strength, transmission quality and device power consumption.
• Secure storage — Data stored on secure servers with a stated retention period of 3 years.
• Automatic alerts — Immediate notifications for equipment anomalies, disconnections or faults.

Installation & design
Freestanding (desk), wall-mounted, ceiling-mounted or installed on a DIN rail. Quick setup via included AC adapter and QR code activation. Compact dimensions allow discreet placement in utility rooms, electrical panels or public-access spaces.

Technical specifications

• Terms of use — Indoor environment (IP30 protection); Operating temperature: -10°C to +60°C; Humidity: 10% RH to 100% RH (non-condensing).
• Set contents — 1 MASTER CORE gateway; 1 3 dBi LoRaWAN antenna; 1 multi-carrier 4G SIM card; 1 wall-mount/DIN-rail kit; 1 5V AC adapter with power plug.
• Connectivity — LoRaWAN (EU868); BACnet/IP via Ethernet; 4G LTE (secure, multi-carrier SIM); Ethernet.
• Mounting type — Wall-mounted, ceiling-mounted, freestanding; DIN-rail mounting kit included.
• Data storage — Secure servers with 3-year retention stated.
• Warranty — 2 years *
• Certification — CE, UKCA.
• References
  Reference — LoRaWAN
  G320LR — EU868
• Dimensions — 135 × 60 × 35 mm.
