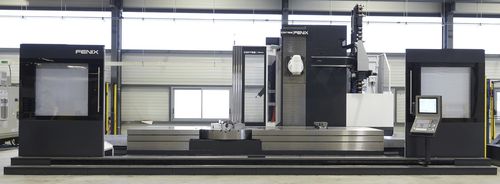

3-axis CNC milling machine FENIX TuniversalISO 50HSK-100
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Spindle mount
- ISO 50, HSK-100, Capto C8
- Applications
- cutting
- X travel
Min.: 4,000 mm
(157 in)Max.: 25,000 mm
(984 in)- Y travel
Min.: 1,250 mm
(49 in)Max.: 1,500 mm
(59 in)- Z travel
1,500 mm, 2,000 mm, 2,300 mm, 2,500 mm, 3,000 mm
(59 in, 79 in, 91 in, 98 in, 118 in)- Rotational speed
6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)- Power
33 kW, 42 kW, 43 kW
(44.87 hp, 57.1 hp, 58.46 hp)- Work feed X-axis
25,000 mm/min
(16 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)
Description
Multitasking machine FENIX combines several cutting processes on one machine. These machines offer the manufacturing capabilities of milling and turning machines into one integrated unit to use the functionality of both simultaneously.
STANDARD EQUIPMENT
Automatic Universal Head
Numerical control Heidenhain or Siemens (Operate HMI)
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y and Z axes
Lamp in the working area
Hydraulic and cooling group
Linear scales in all axes
External Coolant with adjustable nozzles in the head
Internal and external air flow
Guarding
Tele-service
VIXION 4.0
