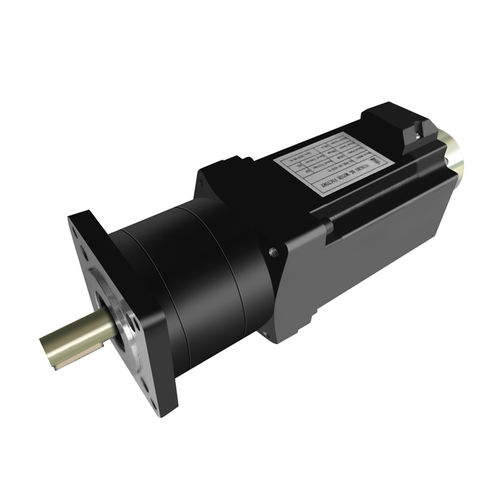

DC gear-motor brushlessplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, brushless
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 500 W...1000 W
- Voltage
- 48 V
- Torque
- 20 - 50 Nm
- Product applications
- for hydraulic applications
- Other characteristics
- custom
Description
Product Description
Products name 86mm dc brushless planetary motor
Dimension 86×86mm
Noise ≤65db
Iput voltage 48V
Maximum output power 785W
Maximum efficiency 80%
Speed at maximum efficiency 210rpm
Torque at maximum efficiency 32N.m
Electrical connection S1
Operation temperature B
Protection grade IP00
Use Hydraulic equipment
