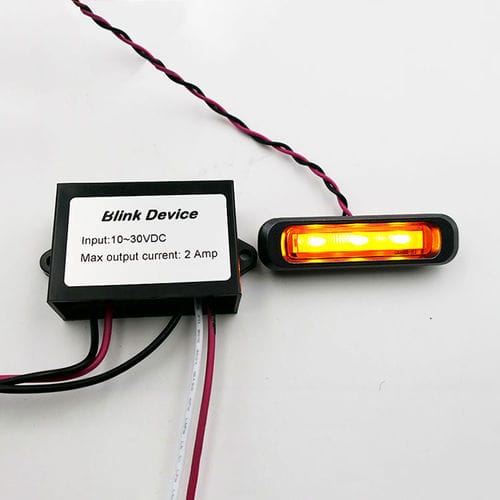

Blinking signaling device AC-R2A

According to ECE R48, Rev. 6., especially O3, O4 vehicles of trailers above 3.5t homologated after 18 Oct, 2017, side markers must flash synchronously with direction indicator. The blink device for side marker lamp is ECE R10 in pending, the max current is 2A. The blink device is the control for blinking of side marker lights, the side-marker lamps shall be flashing in accordance with the flashing device of the towing vehicles or trailers. ■ Product Introduction The blink device is mainly design for heavy duty vehicles and transportation vehicles. It is 10-30V, IP68, 100% waterproof. The blink device - the electronic flashing circuit in a relay is design for signal light system. Numbers of side markers connect to the cable of the device which will be centrally controlled by Blink Device. One blink each side marker, two units per vehicles. ■ Features 1. 10-30V blink device 3. IP68, Sealed with glue, 100% waterproof 4. Operating temperature -30°C ~ 50°C 5. ECE R10 in pending 6. According to ECE R48, Rev. 6 7. The relay for side marker. Side markers flash synchronously with D.I. 8. Max Current 2A 9. Applications: Heavy duty trucks and trailers, transportation vehicles
