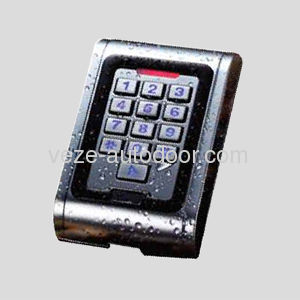

13-key keypad AK05

panel-mountstainless steelwaterproof

General description of Automatic door access keypad (water-proof type) (a). Exquisite design, silver plated keypad with back light (b). Output with protection function, waterproof and damp proof, suitable for outdoor use (c). Multifunction device, can use as a WG26 card reader alone (d). Three opening modes: card, code, card+code (e). Waterproof degree: IP68 (f). Storage capacity: 3000 user's cars,3000 codes Overall features of Automatic door access keypad (water-proof type) 1, Energy saving: Low power consumption, standby current is less than 30mA 2, Night vision function: With luminous keyboard, able to operate at night 3, Large storage capacity: 3,000 users 4, Independent password: Can use the password only 5, Users convenient: Users can change the password by themselves 6, Fast identification speed: Able to open the door in less than 0.1S. 7, Output short circuit protection function: System will automatically turns off output when the electric lock or alarm's output short circuit is within 100μS. 8, Wiegand output: Wiegand interface, support Wg26, Wg34 9, Safety protection function: In case some card is lost, the keyboard can remove the card number directly, completely eliminate security risks 10, Alarm system: There will be special built-in buzzer alarm sounds upon malfunction Technical specifications of Automatic door access keypad (water-proof type)
