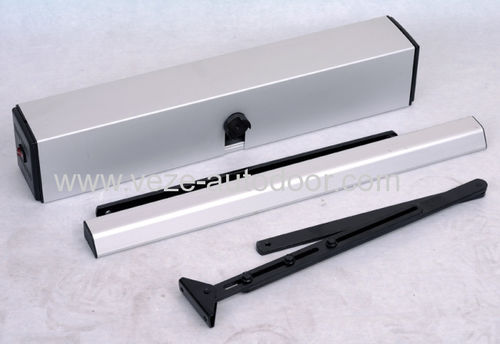

Swing door system SW200

aluminumautomaticsafety

Features of automatic swing door closer: 1.Microcomputer technology, self-learning function 2. Modular design , easy installation and replacement 3. With intelligence self-protection of overheat and overload, can rebound back upon an obstacle, safe and reliable 4. Electric lock control function 5. Intelligent control system with adjustable parameters 6.Advanced brushless motor with lower consumption,energy saving, high efficiency, great torque, low noise and long service life. 7. The door can be connected with remote control, password reader, card reader, microwave sensor, exit switch, etc. 8. Safety beam protects the guest from bumping the door, safe and reliable. 9. Optional backup battery can ensure the normal operation in case of power failure Technical specifications of automatic swing door closer: Door opening mode Single opening/Double opening Open angle 60-120degree Door width 500mm-1200mm Door weight 150kg(Max) Opening speed 200~400mm/s(adjustable) Closing speed 200~400mm/s(adjustable) Opening time 1-10s(adjustable) Power supply AC220V-AC240V 50Hz-60Hz Brushless motor 100W, DC24V Operator size 500*85*110mm(L*W*H) (adjustable) Operation noise ≤ 55dB Operating temperature -20°C~60°C
