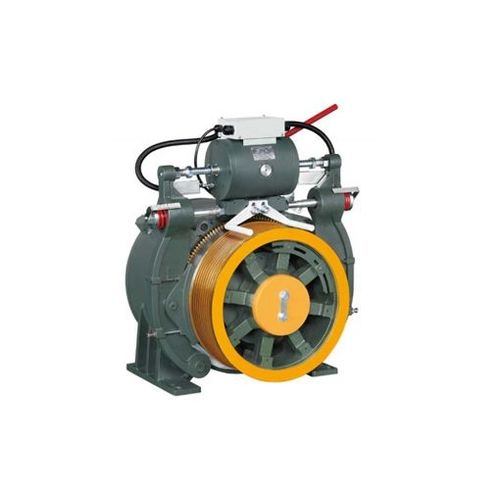

Synchronous motor WYJ250 series3-phase400 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, 3-phase
- Voltage
- 400 V
- Configuration
- permanent magnet, with DC brake
- Number of poles
- multipole
- Applications
- traction, for elevators
- Other characteristics
- high-torque, low-noise, low-speed
- Power
Min.: 4.3 kW
(5.85 hp)Max.: 20.8 kW
(28.28 hp)- Intensity
Min.: 9.9 A
Max.: 61 A
- Torque
Min.: 432 Nm
(318.626848 ft.lb)Max.: 1,120 Nm
(826.069607 ft.lb)- Rotational speed
Min.: 93 rpm
(584.3362 rad.min-1)Max.: 280 rpm
(1,759.2919 rad.min-1)
Description
Product features
Traction ratio: 2:1
Rated capacity: 630、800、1000、1250kg
Rated elevator speed: 1、1.6、1.75、2、2.5、3.0m/s
Max. lifting height: 120m
Max. shaft load: 8000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening,
and DC100V for brake holding
Number of motor poles: 24 poles
Product Description
WYJ250 series of permanent-magnet synchronous gearless traction machines are directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and has the advantages of low energy consumption, low noises, no pollution, and little maintenance.
This series of permanent-magnet synchronous gearless traction machines includes single wrap type and double wrap type, and roping factor is 2:1 for both types.
