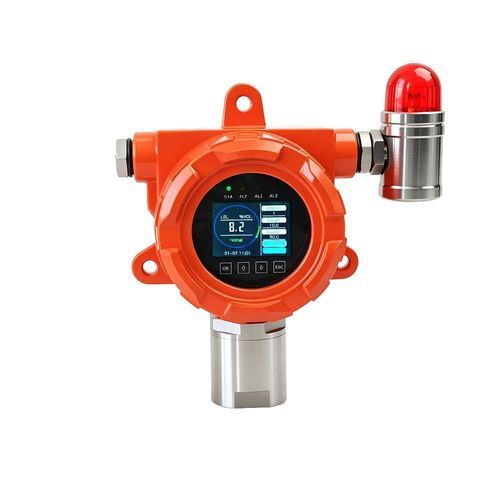

Carbon monoxide gas transmitter MY F101

sulfur dioxideoxygenhydrogen

Product overview
The MY F101 series gas detection transmitter uses advanced large-scale integrated circuit and mixed digital-analog communication technology. It is an intelligent fixed gas detector with communication, self-diagnosis and remote alarm capabilities, designed for industrial applications such as petrochemical, metallurgy, refining, gas transport/distribution and biochemical sectors. Compatible with PLC and DCS control/alarm systems for remote monitoring and control.

Features

• Power supply: DC 12–28 V industrial DC
• Standard 4–20 mA signal output
• Two configurable relay outputs
• Dedicated sound and light alarm output interface
• 128 × 64 dot-matrix LCD with large-character display
• Independent pre-warning and alarm thresholds on two relays
• Infrared remote-control for convenient remote operation
• Separate calibration for displayed value and 4–20 mA output to improve accuracy

Technical parameters
Power supply voltage: DC 12 V–28 V, 500 mA, power ripple < 20 mV
Output error: < 1% (4–20 mA range)
Relay rating: DC 48 V 1 A, AC 250 V 1 A
Operating temperature: -40 °C to 70 °C (flammable); -20 °C to 55 °C (adjustable, temperature compensation required)
Humidity: 10–95% RH non-condensing
Atmospheric pressure: 90–110 kPa
Dimensions: 193 × 139 × 92 mm (L × W × H)
Housing: Die-cast aluminum, explosion-proof and corrosion-resistant
Weight: 1.5 kg (net)
Explosion-proof rating: Ex d IIC T6 Gb

Gas detection specifications

• Oxygen — Range: 0–30 %VOL; Low alarm: 19.5 %VOL; High alarm: 23.5 %VOL; Resolution: 0.1 %VOL
• Flammable gases — Range: 0–100 %LEL; Low alarm: 20 %LEL; High alarm: 50 %LEL; Resolution: 1 %LEL
• Carbon monoxide — Range: 0–1000 ppm; Low alarm: 50 ppm; High alarm: 150 ppm; Resolution: 1 ppm
• Hydrogen sulfide — Range: 0–100 ppm; Low alarm: 10 ppm; High alarm: 20 ppm; Resolution: 1 / 0.1 ppm
• Ammonia — Range: 0–100 ppm; Low alarm: 20 ppm; High alarm: 50 ppm; Resolution: 1 / 0.1 ppm
• Hydrogen — Range: 0–1000 ppm; Low alarm: 200 ppm; High alarm: 500 ppm; Resolution: 1 / 0.1 ppm
• Chlorine — Range: 0–20 ppm; Low alarm: 5 ppm; High alarm: 10 ppm; Resolution: 1 / 0.1 ppm
• Hydrogen chloride — Range: 0–20 ppm; Low alarm: 5 ppm; High alarm: 10 ppm; Resolution: 1 / 0.1 ppm
• Sulfur dioxide — Range: 0–20 ppm; Low alarm: 5 ppm; High alarm: 10 ppm; Resolution: 1 / 0.1 ppm
• Nitric oxide — Range: 0–250 ppm; Low alarm: 50 ppm; High alarm: 125 ppm; Resolution: 1 / 0.1 ppm
• Nitrogen dioxide — Range: 0–20 ppm; Low alarm: 5 ppm; High alarm: 10 ppm; Resolution: 1 / 0.1 ppm

Technical specifications

• Model series: MY F101 series
• Signal output: 4–20 mA standard
• Alarm outputs: Two relay outputs (configurable thresholds)
• Display: 128 × 64 dot-matrix LCD
• Power input: DC 12–28 V, 500 mA
• Relay rating: DC 48 V 1 A, AC 250 V 1 A
• Operating temperature: -40 °C to 70 °C (flammable); -20 °C to 55 °C (adjustable)
• Humidity: 10–95% RH non-condensing
• Atmospheric pressure: 90–110 kPa
• Enclosure: Die-cast aluminum, explosion-proof and corrosion-resistant
• Dimensions: 193 × 139 × 92 mm
• Weight: 1.5 kg
• Explosion-proof rating: Ex d IIC T6 Gb
• Optional detection gases and ranges available
