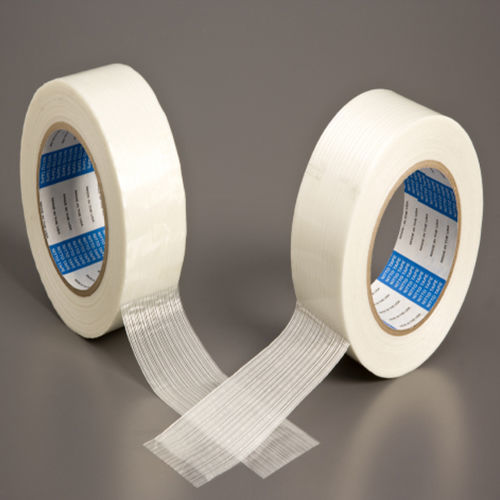

Polypropylene strapping tape P-170

fiberglass

Product overview
Our flame retardant, high strength P-170 is one of our economy priced reinforced strapping tapes with a price and performance rated value. This product is ideal in numerous packaging applications in a variety of markets.

Features

• High-strength adhesive system provides permanent hold to boxboard.
• Glass yarn reinforcement offers built-in strength.
• Abrasion resistant.
• Good shock and impact resistance.
• Performs well with handheld dispensers.
• Compares to Permacel's discontinued P-174 & P-167.

Properties
BACKING MATERIAL: Polypropylene Film, Glass reinforcement
ADHESIVE: Synthetic Rubber / Resin
COLOR: Clear
Certifications: UL-510

Physical / Performance Data
Imperial / Metric
Total Tape Thickness: 4.2 mils / 0.107 mm
Adhesion to Steel: 51 oz/in / 5.6 N/10mm
Tensile Strength: 175 lbs/in / 306.3 N/10mm
Elongation: 3% / 3%
Unwind @150 FPM: 20 oz/in / 2.2 N/10mm

Characteristics / technical specifications

• Model: P-170
• Flame retardant reinforced strapping tape
• Backing: Polypropylene film with glass yarn reinforcement
• Adhesive: Synthetic rubber / resin
• Color: Clear
• Certification: UL-510
• Total thickness: 0.107 mm (4.2 mils)
• Adhesion to steel: 5.6 N/10mm (51 oz/in)
• Tensile strength: 306.3 N/10mm (175 lbs/in)
• Elongation: 3%
• Unwind @150 FPM: 2.2 N/10mm (20 oz/in)
• Designed for good abrasion, shock and impact resistance and compatibility with handheld dispensers
