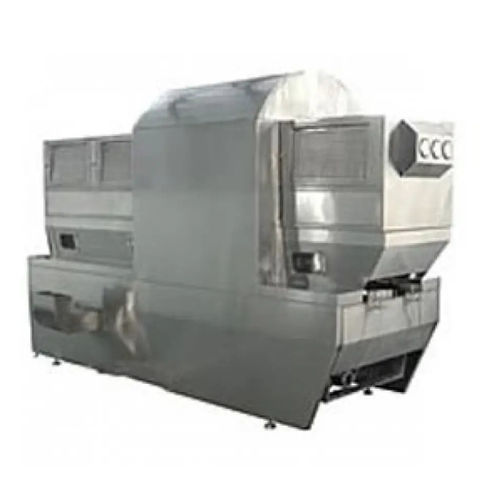

Process sterilizer NKST-950

heattunnelwith cooler

N.K INDUSTRIES ISO class 5 continuous sterilizer is basically a fully automated system which utilises dry heat by means of forced convection of filtered air through high efficiency particulate air filter to achieve sterilization of washed empty pharmaceutical glasswares used for parenteral product packaging. N.K INDUSTRIES continuous dry heat sterilizer (tunnel) ensures glassware is exposed to depyrogenation temperature for time required for the necessary reduction in endotoxins which at bare minimun is > log 3 at rated output. N.K INDUSTRIES continuous dry heat steriliser (tunnel) can be used as a stand alone unit or can be supplied configured for easy integration with washing machine at its upstream side and filling - sealing machine at its downstream side thereby forming high speed - high yield parenteral product packaging line. The forced conventional dry sterilizer consists of Drying Zone to evaporate the wash water from the glassware. The sterilizing Zone sterilizes the glassware at 300 0c (apprx). And the third section consists of cooling and sterilizing zone to restore the glassware temperature to ambient. DRYING ZONE COMPRISES OF: The Forced Conventional Dry Sterilizer Consists Of Drying Zone/ Preheat Zone To Evaporate The Wash Water From The Glassware. The Basic Units In This Zone Are As Follows: EU - 7 Grade Prefilter Motor - Blower Assembly EU - 13 Grade Minipleat Final Filter Utilizing State - Of - Art Hot Melt Technology.
