Steel honing

ceramicsuperalloyautomotive

Overview Norck provides precision CNC honing services designed to achieve superior surface finishes, ultra-tight tolerances, and high geometric accuracy for critical mechanical components. These services support both high-volume production and specialized prototypes and are targeted at demanding industries that require consistent, repeatable finishing performance.

Applications

• Aerospace
• Automotive
• Hydraulics
• Precision manufacturing
• Medical and other high-reliability industries

Capabilities

• Advanced machines: multi-axis honing for complex geometries
• Precision abrasives: diamond & CBN tools for ultra-smooth finishes
• In-process metrology: real-time feedback to guarantee accuracy
• Material expertise: hardened steels, alloys, ceramics, composites
• Engineering support: design, process, and performance optimization

What is honing? Honing is a precision finishing process that refines a machined metal workpiece surface by removing small amounts of material using an abrasive rotating instrument. It is typically used to refine internal bores, improving dimensional accuracy, geometry (roundness/straightness/taper) and surface finish.

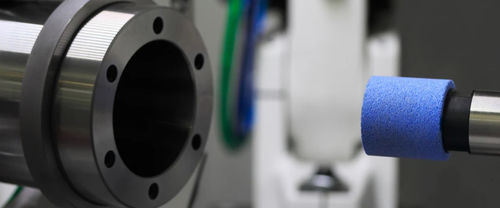

How it is fabricated The honing tool is inserted into the workpiece and rotates and translates to remove material. Constant coolant is applied to cool the tool and evacuate swarf. The tool diameter is adjustable to maintain contact between the honing sticks and the interior diameter of the workpiece.

Advantages

• Higher accuracy: tight tolerances (published values down to ±1 µin / ±0.025 µm)
• More consistent: computer-controlled processes deliver repeatable results
• Higher surface finish: capability to reach ultra-smooth finishes (Ra values down to ≈2 µin / 0.05 µm; capability cited Ra < 0.1 µm in certain processes)

Technical characteristics / specifications

• Service type: CNC Honing (precision finishing / bore refinement)
• Typical surface finish capability: down to Ra ≈ 2 µin (≈0.05 µm); Ra < 0.1 µm with diamond & CBN abrasives
• Typical geometric/tolerance capability: bore tolerances and geometric control to ultra-tight levels (example cited ±1 µin / ±0.025 µm)
• Tooling: diamond and CBN abrasive sticks
• Machine capability: multi-axis honing for complex geometries
• Metrology: in-process, real-time measurements and feedback
• Materials processed: hardened steels, various alloys, ceramics, composites
• Quality standard: ISO 9001:2015 certified
• Typical outputs: improved roundness, straightness, taper, bore size control, reduced friction and extended part life
