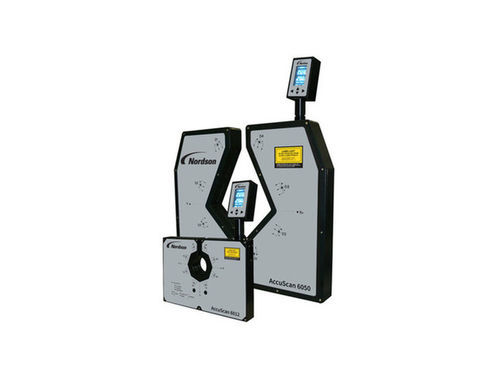

Roundness measuring instrument AccuScan 6000

Overview
AccuScan 6000 is a four-axis scanning diameter and ovality gauge providing extended circumference coverage and high accuracy to help products meet tight design and quality specifications. It measures diameter and ovality around the product circumference from four directions, making it suitable for wire, cable, tube, hose and other extruded or drawn cylindrical or shaped products.

Features & Benefits

• Comprehensive circumference coverage – yields a more accurate average diameter for products up to 50 mm.
• Ovality measurement up to 100% accuracy when the product is aligned with measurement axes.
• Improved flaw detection – up to ~25% better detection than three-axis gauges.
• Higher product yield by reducing scrap and off-spec production.
• Ultra-fast scanning – up to 9600 scans per second total (2400 scans/sec per axis).
• Single-scan repeatability down to 1 µm (model-dependent) using a proprietary calibration algorithm.

Applications

• Plastic medical tubing (catheters, drug-delivery tubing, surgical tubing, small medical tubing).
• Wire and cable (LAN/category, coaxial, medical, automotive, specialty cable).
• Plastic automotive tubing.
• Plastic heat-shrink tubing.
• Cord and line.
• Other extruded or drawn cylindrical, flat or unique-profile products.

Models available
AccuScan 6012 | AccuScan 6050
Number of axes: 4 | 4
OD range: 0.1 - 12 mm (0.004 – 0.47 in) | 0.5 - 50 mm (0.020 - 2.00 in)
Gate size: 16 mm (0.63 in) | 60 mm (2.36 in)
Accuracy: ±0.0005 mm (±0.000020 in) | ±0.001 mm (±0.000040 in)
Repeatability: ±1 µm ±0.025% | ±2 µm ±0.025%
Resolution: 0.00001 mm (0.0000004 in) | 0.00001 mm (0.0000004 in)
Scan rate: 2400 scans/sec/axis (total 9600 scans/sec) | 2400 scans/sec/axis (total 9600 scans/sec)

Notes
The four-axis scanning design reduces blind zones compared with two- or three-axis gauges, improving detection probability for lumps and neckdowns and providing a more representative average diameter. The system's calibration algorithm enables high single-scan repeatability for inline quality control.

Technical specifications

• Series: AccuScan 6000
• Models: AccuScan 6012, AccuScan 6050
• Axes: 4 (four-axis scanning)
• OD measurement ranges: 0.1–12 mm (6012); 0.5–50 mm (6050)
• Gate sizes: 16 mm (6012); 60 mm (6050)
• Accuracy: ±0.0005 mm (6012); ±0.001 mm (6050)
• Repeatability: ±1 µm ±0.025% (6012); ±2 µm ±0.025% (6050)
• Resolution: 0.00001 mm
• Scan rate: 2400 scans/sec per axis (total 9600 scans/sec)
• Single-scan repeatability: down to 1 µm (model dependent)
• Typical industries: medical tubing, wire & cable, automotive tubing, heat-shrink, cord/line, other extruded/drawn profiles
