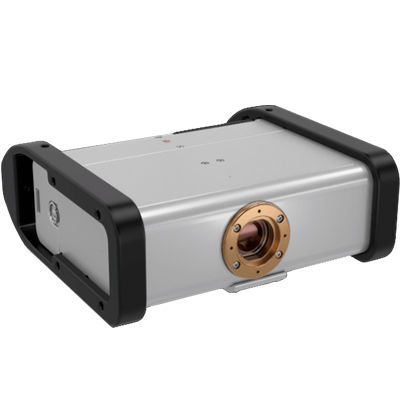

Portable X-ray tube M-ray

A fully self-contained, wireless X-ray tube, M-ray offers a unique solution for field radiography applications. Its compact and lightweight design allows you to perform X-rays with total comfort and confidence. Main features Voltage range: up to 150kV. Current range: 0.2-1 mA. Maximum power: 150 W (1mA) in constant, non-pulsed output. Focal spot size: 0.5 mm. Beam: 35×40° conical beam. Input line range: 24 V LIFE04 battery or 24 VDC ±10% (external power). Battery life: 4h standby or 20’ transmitting. 100% wireless and up to 5h battery life. Lightweight and ultra-compact design. Secure PC control. Radiation shield: Less than 0.5 mR/h at 5 cm from the surface of the chassis according to FDA 21 CFR 1020.40. Generator weight: 6.3 kg. Dimensions: 245 x 80 x 184 mm.
