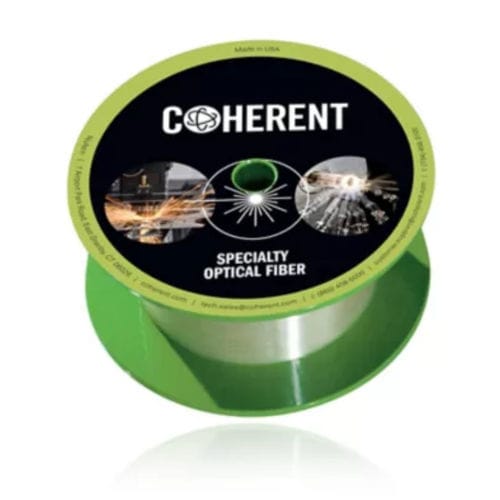

Polyimide fiber OCT series

rodspoolcontinuous

Coherent -OCT select cutoff single-mode fibers are optimized for Optical Coherence Tomography (OCT) medical imaging methods. These application-specific fibers were developed for next generation OCT applications that operate at both 780 and 1060nm and require exceptional uniformity, tight dispersion and core/clad concentricity control. The fibers are ideally suited for couplers used in OCT. This fiber can still be used for traditional applications as well and is prooftested to 200kpsi for superior strength. These -OCT fibers are part of the NuVIEWFA family of fibers providing extra high performance specifications for increased component reliability, component performance and production yields reducing component manufacturing costs. The -P version has a polyimide coating reducing overall fiber diameter and increasing operating temperature to 300°C. Typical Applications OCT medical imaging Components/couplers Pump diode pigtails Couplers (including WDM) Single clad Yb-fiber pigtails Features & Benefits Extremely tight dispersion uniformity and control — Required for high performance OCT components Exceptional uniformity and core/clad concentricity — Low, consistent splice loss to device components Superior low loss — Improves overall system device SNR Higher proof test levels — Critical for long term reliability in tight bend applications OCT-P version with polyimide coating — Enables high temperature (300°C) operation
