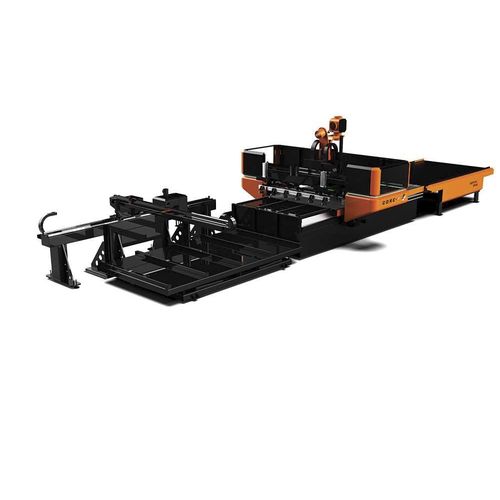

3-axis CNC machining center CORE-X Plus
5-axis4-axisvertical

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis, 5-axis, 4-axis
Spindle orientation
vertical
Structure
gantry
Machined material
for aluminum, for wood, for composites
Spindle mount
HSK F63
Number of tool stations
8 tools
Applications
heavy-duty, for the wood industry
Other characteristics
engraving, milling, high-performance, high-speed, high-precision, rigid, high-productivity, automated loading/unloading, for production, conveyor belt, with gantry loader
X travel

2,800 mm, 3,700 mm
(110 in, 146 in)

Y travel

2,100 mm
(83 in)

Z travel

360 mm
(14 in)

Rotational speed

24,000 rpm
(150,796 rad.min-1)

Description

All OEMAK machines are designed using SOLID WORKS 3D programming and made with enhanced ST52 high quality steel using the latest technology. CORE-X CNC Wood Router has rigid body and gantry made of steel constructions. This rigid gantry runs with high precision rack & pinion. High quality and repetitive cuts are obtained by using synchronized servo motors and drivers connected to high quality rack and pinion. Worldwide and well-known brands such as FESTO, HSD, ILC Lubrication, Güdel, Baumüller, Becker, Beckhoff, Alphacam Cad/CAM, Siemens etc. electrical, pneumatical systems are used on OEMAK machines. We have combined these components with our intelligent and highly capable software. Control Unit and Interface With the help of 21” wide screen industrial pc and our own user panel, operators won’t have any trouble. Our engineers have created user friendly control panel for every production needs. Also, this panel can be used Android and IOS devices as well. This user-friendly interface has been created by our engineers for your benefits. We have carefully listened operators and investors thoughts and reflected their needs into this interface. Also, since engineers are part of our team, you will not get 3rd party support with it. All the support you may need will be provided directly by us. Automatic Labelling & Alignment (Optional) The automatic labelling unit aligns and labels the plates loaded on the lift. This system is working integrated with machine and provides increased productivity and helps controlling the production process.

VIDEO

Catalogs

CORE-X PLUS
CORE-X PLUS
16 Pages
