Roller conveyor RU 8 serieshorizontalelectric driveconstruction
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Form
- horizontal
- Drive mechanism
- electric drive
- Sector
- construction, for assembly lines
- Other characteristics
- automatic, unloading
Description

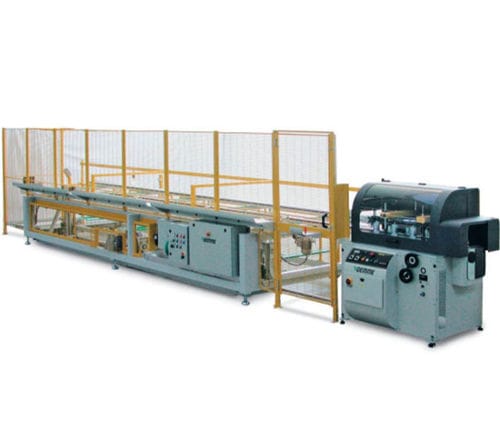

AUTOMATIC UNLOADING ROLLER CONVEYORS
• Idle roller conveyor with polizene rollers Ø50 mm - step 450 mm
• Length = 6500 mm
• Motor powered rubber roller driven by a pneumatic cylinder to facilitate the coming out of the bar
• Orthogonal pneumatic pusher with 3 pivoting arms, provided with rubber roll in the contact point with the bar
• 3 polizene chutes, length 3000 mm, provided with hinges to fold the roller conveyor when it is not used
• External wire fence protection, height = 2000 mm, with entrance gate equipped with safety micro
• Side supports for polyamide bars, fixed to the external wire fence protection
• Electric system with box on board of machinery and control console
• Overall dimensions: 9960 mm (a) x 3500 mm (b) x 2000 mm (c)
• Weight: 550 Kg
VIDEO
