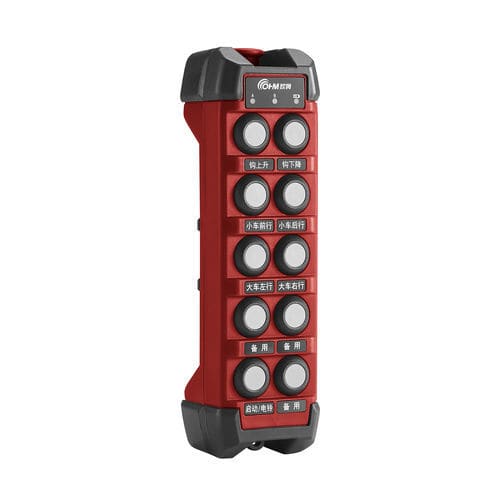

Compact radio transmitter A12

modularIP66

Long standby time, two batteries work for 30 days； Transmitter and receiver are universally paired without reprogramming； Protection grade IP66, face rain and oil pollution； The receiver is heavy-duty and directly connected, lightweight and compact, and quick and easy to install； Sound and light prompts during action, eliminating the need for additional alarms； Modular design, super cost-effective. Working temperature: -25℃—70℃ Working humidity: ≤97%RH Communication distance: ≥80m Transmitter: Dimensions: 198mm x 58mm x 49mm Product weight: 350g(without battery) Shell material: high-strength engineering plastics Protection level: IP66 Communication method: instant messaging Transmitting frequency: 400-470MHz Transmitting power: ≤10mW Operation form: button type Number of keys: ≤10 Working power supply: 3.0V (two dry batteries in series) Working electric current: ≤30mA Standby electric current: ≤0.5mA Status display: LED Antenna: built-in Receiver: Dimensions: 162mm x157.5mm x 63mm Product weight: 750g Shell material: high-strength engineering plastics Protection level: IP65 Power supply: 48V AC or 220V AC Rated power: ≤6W Status display: combined sound and light display Antenna: built-in Output mode: ≤12 relays Relay capacity: 4A/250V AC Output interface: HAN10 or HAN16 heavy-duty connector
