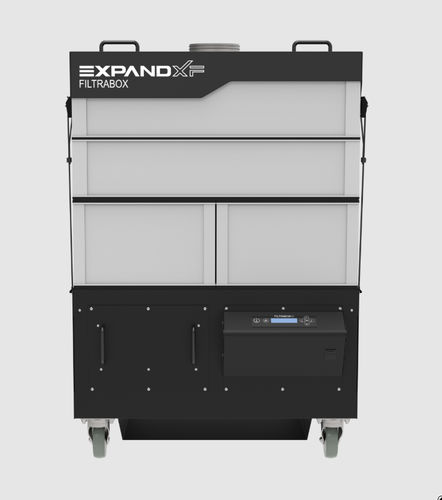

Floor-standing fume extractor Expand XFmobilelaserlaser marking
Add to favorites
Compare this product
Characteristics
- Mobility
- mobile, floor-standing
- Applications
- laser, engraving, laser marking, cutting
- Filter type
- activated carbon filter, with HEPA filter, dry filter, with in-line filter
- Other characteristics
- automatic, compact, with ventilator, modular, extendable
- Airflow
Min.: 399 m³/h
(14,091 ft³/h)Max.: 2,400 m³/h
(84,755 ft³/h)- Voltage
Min.: 0 V
240 V
Max.: 240 V
- Intensity
Min.: 0 A
Max.: 30 A
- Frequency
Min.: 50 Hz
Max.: 60 Hz
- Width
Min.: 0 µm
Max.: 762,000 µm
(30 in)- Total length
Min.: 0 µm
Max.: 1,143,000 µm
(45 in)- Depth
Min.: 0 µm
Max.: 1,067,000 µm
(42.01 in)- Noise level
Min.: 0 dB
Max.: 65 dB
Description
Expand XF Series
CLEANER AIR, SAFER WORK ENVIRONMENTS
The Expand XF fume extraction system delivers professional-grade air purification for laser cutting and engraving applications. Engineered with advanced filtration technology and intelligent control systems, Expand XF ensures a clean, safe working environment while maximizing operational efficiency. Expand XF systems are designed for extended filter life and minimal maintenance, reducing your total cost of ownership while maintaining peak performance.
All systems come with three high efficiency individual filter systems ensuring comprehensive capture of respirable dust and Volatile Organic Compounds (VOCs), Pre-filter, HEPA filter and activated chemical/carbon. Intelligent flow regulators and easy to use user interfaces are features of the system.
Filtrabox uses high-performance HEPA filters with an impressive tested efficiency of 99.999% @ 0.3 microns. This means that it removes 99.999% of the most aerodynamically penetrating particles, known to be 0.3 microns, while smaller and larger particles are even more effectively captured, resulting in extremely clean air, free of respirable dust.
Filtrabox’s blend of both high-performance activated carbon adsorption media and potassium permanganate chemical treatment media offers the broadest range of laser VOC protection available.
6 models are available to meet demands from small laser systems and light-duty applications through medium-duty applications with higher Volatile Organic Compounds (VOC) generation to ultra high-volume industrial production. They use combinations of different capacity filters and blowers.
Modularity for Serviceability.
Filtrabox fume extractors comprise of many complex electronics components and sensors to monitor and control their performance. However, we have simplified the Filtrabox by consolidating the components into two simple and removeable modules:
Electronics Module: This module includes all the interface, control and power systems.
Blower Module: This module includes the blowers and flow sensor.
CLEANER AIR, SAFER WORK ENVIRONMENTS
The Expand XF fume extraction system delivers professional-grade air purification for laser cutting and engraving applications. Engineered with advanced filtration technology and intelligent control systems, Expand XF ensures a clean, safe working environment while maximizing operational efficiency. Expand XF systems are designed for extended filter life and minimal maintenance, reducing your total cost of ownership while maintaining peak performance.
All systems come with three high efficiency individual filter systems ensuring comprehensive capture of respirable dust and Volatile Organic Compounds (VOCs), Pre-filter, HEPA filter and activated chemical/carbon. Intelligent flow regulators and easy to use user interfaces are features of the system.
Filtrabox uses high-performance HEPA filters with an impressive tested efficiency of 99.999% @ 0.3 microns. This means that it removes 99.999% of the most aerodynamically penetrating particles, known to be 0.3 microns, while smaller and larger particles are even more effectively captured, resulting in extremely clean air, free of respirable dust.
Filtrabox’s blend of both high-performance activated carbon adsorption media and potassium permanganate chemical treatment media offers the broadest range of laser VOC protection available.
6 models are available to meet demands from small laser systems and light-duty applications through medium-duty applications with higher Volatile Organic Compounds (VOC) generation to ultra high-volume industrial production. They use combinations of different capacity filters and blowers.
Modularity for Serviceability.
Filtrabox fume extractors comprise of many complex electronics components and sensors to monitor and control their performance. However, we have simplified the Filtrabox by consolidating the components into two simple and removeable modules:
Electronics Module: This module includes all the interface, control and power systems.
Blower Module: This module includes the blowers and flow sensor.
