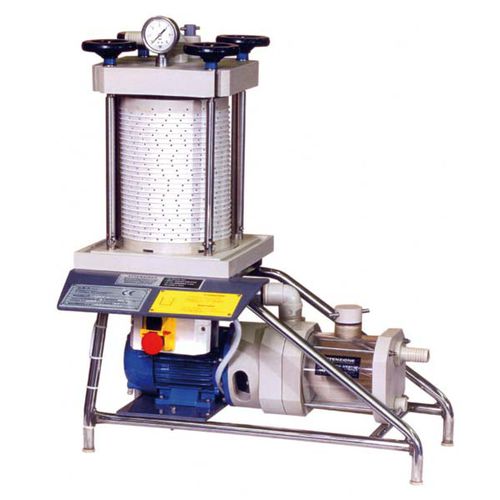

Pressure filtration unit CESE3

cartridgemagneticmechanical

MODEL CESE 3 The OMG filter pumps produced in the series CESE are designed to be introduced in the surface treatment process called “electroplating”. According to such technique, metallic objects to be plated for decoration or protection are covered by electrolysis with a thin layer of another metal. The filter pumps CESE are suitable to filter electrolytic solutions used in the following processes: acid/alkaline nickel plating, acid/alkaline copper plating, acid/ alkaline zinc plating, alkaline cadmium plating, acid/ alkaline tin plating, acid/alkaline gold plating, alkaline silver plating, alkaline brass plating. TECHNICAL SPECIFICATIONS PUMP It is made of anticorrosive or highly protected materials to withstand acids and dangerous filtering-liquid components. • Polypropylene (Moplen) pump body and rotor • Silicon carbide mechanical seal • Effective capacity (l/h) 3 000 • Capacity (l/h): 6 700 • Working pressure (bar): ca. 1,8-2 N.B. The filter pumps of the series CESE marked with the letter “M” are equipped with a magnetic entrainment pump, which is designed without mechanical seal. This constructional feature makes the pumps CESE M suitable to f ilter gold-plating and silver-plating baths. FILTER It is made up of a transparent plastic cylinder, diam. 230 mm, containing the filtering block. • Layer-structure filtering block: it is composed of disk inserts alternated with a series of double filtering papers • Filtering insert dimensions (mm): O.D. 200 • Filtering paper dimensions (mm): D.(hole) 32 O.D. 205 • No. of filtering inserts: 26 • No. of filtering papers: 27 • Filtering surface (m2): ca. 0,8 • Filtering degree: < 1 µm
