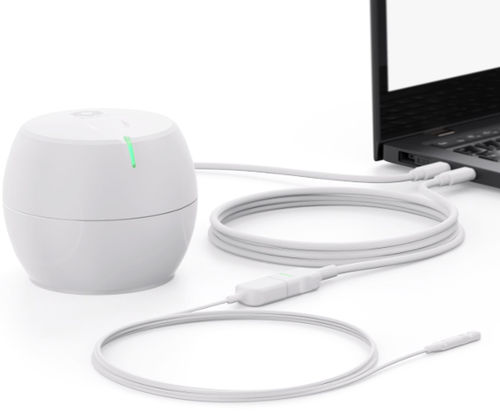

Wireless tracking system

data3D

IS A 3D TRACKING SYSTEM THAT COMBINES SUBMILLIMETER PRECISION WITH UNRIVALED CONVENIENCE AND VERSATILITY. IT’S THE ONE-STOP SOLUTION FOR ALL YOUR HUMA N-MACHINE INTERACTION NEEDS. PRECISION, CONVENIENCE, VERSATILITY: THE FUNDAMENTALS A base station that fits in the palm of your hand. Robust tracking performance with no calibration. An intuitive, plug-and-play architecture. Track surgical tools, humanoid robot, everything. The base station individually tracks any sensor within its tracking range, as many as needed THE MOST SCALABLE AND EFFICIENT 3D TRACKING TECHNOLOGY IN THE MARKET. Industry leading MEMS sensors as small as 1mm. Ready to be embedded into any object. - OLD LIMITATIONS + ESSENTIAL ADVANTAGES Ommo harnessed the natural advantages of the permanent magnet to overcome the limitations of the existing 3D tracking technologies. Over the last 8 years, we made conscious engineering decisions to maximize the precision, convenience, and versatility. TRACKING OUTPUT ● Data: Full 3D position and orientation ● Rate: Up to 1 kHz ● Range: 650mm radius sphere BASE STATION ● Size: 100.6mm x 82.5mm (D x H) ● Weight: ~ 500 grams ● Power: ○ Max: <500mA @ 5V ○ Typical: <400mA @ 5V ●Communication: ○ Power & Data: USB C 2.0 ○ Sensor sync: Proprietary 2.4 GHz protocol SENSORS Sensor: Magnetometers (IMU fusion available) ● Size (L x W x H): ○ AX1: 21.2 x 5.30 x 4.1 mm3 ○ AX2: 26.3 x 5.30 x 4.1 mm3 ● Materials: ○ Sensor Tip: Biocompatible, Polyamide ○ Cable: Biocompatible, Shielded TPE ○ Plug: Biocompatible, PC-ABS, Polyurethane ● Communication ○ Wired - USB C (via SIU, sensor interface unit) ○ Wireless - Proprietary protocol
