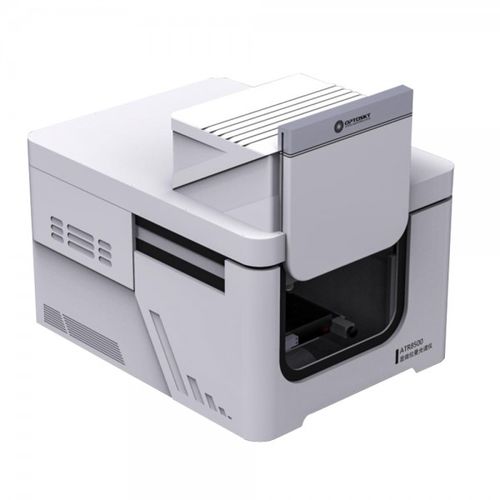

Raman microscope ATR8500 series

medicalfor environmental analysisfor food

ATR8500 designed optimal optical path to improve the sensitivity up to 8 times higher than the miniature Raman microscope ATR8300. Free space patent technology optimization. ATR8500 designed user-friendly cabinet door to perform measurement at any time and space. It requires an exclusive room to perform the measurement in the dark condition in the past, but this new design can shut the door to perform accurate measurement without lighting. In addition, the inner light installed can be turned on after finishing measurement to see clearly inside. ATR8500 allow for customized triple bands selection among 532nm, 633nm, 785nm, 830nm and 1064nm. ATR8500 designs auto-focus, auto-scan, and one button operate a scientific-grade confocal Raman microscope. ATR8500 upgrade the laser spot size up to 1.6μm. The most advanced software can transfer the microscope imaging to computer screen in real time, Visualize accurate position by Raman spectrometer, and the observer can detect Raman signal of samples status on different surfaces, meanwhile synchronizing on PC dispay microarea status to be detected, it has greatly facilitated microarea detection by Raman spectroscopy tech. Reliable Raman database can be obtained in real time ATR8500 configured exclusive objective for Raman system, it makes laser spot size close to diffraction limits, and by using 5-mega camera can display focus information intuitively on computer screen. It can collect the maximum Raman signal from the best status of focal plane, and it perfectly solve collecting Raman signal collected above or below the best focal plane.
