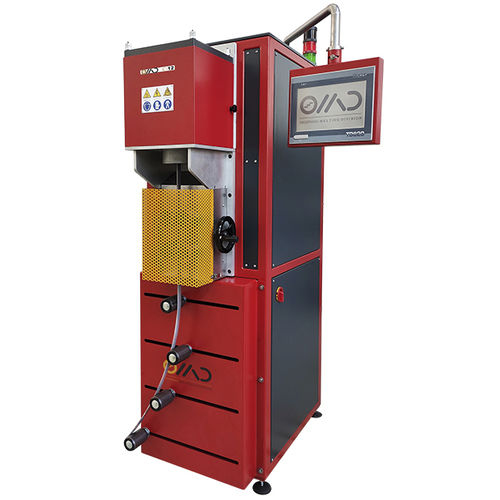

Casting furnace OMD C serieschambercontinuous
Add to favorites
Compare this product
Characteristics
- Function
- casting
- Configuration
- chamber
- Other characteristics
- continuous
- Maximum temperature
1,250 °C, 1,500 °C
(2,282 °F, 2,732 °F)
Description
CONTINUOUS CASTING FURNACES
CRUCIBLE CAPACITY 3,7 KG AU18KT
POWER 5 KW MAX
FROM 1 TO 4 WIRES
TUBE MIN.12X1,5MM MAX.35X5MM
PLATE MAX.50X5MM
CONTINUOUS CASTING FURNACES
CRUCIBLE CAPACITY 5,32 KG AU18KT
POWER 7 KW MAX
FROM 1 TO 4 WIRES
TUBE MIN.12X1,5MM MAX.35X5MM
PLATE MAX.50X5MM
CONTINUOUS CASTING FURNACES
CRUCIBLE CAPACITY 10,2 KG AU18KT
POWER 12 KW MAX
FROM 1 TO 4 WIRES
TUBE MIN.12X1,5MM MAX.35X5MM
PLATE MAX.70X7MM
CONTINUOUS CASTING FURNACES
CRUCIBLE CAPACITY 20,6 KG AU18KT
POWER 20 KW MAX
FROM 1 TO 6 WIRES
TUBE MIN.14X2MM MAX.40X5MM
PLATE MAX.100X15MM
