LED stack light O102

steady3-colorwaterproof

Overview

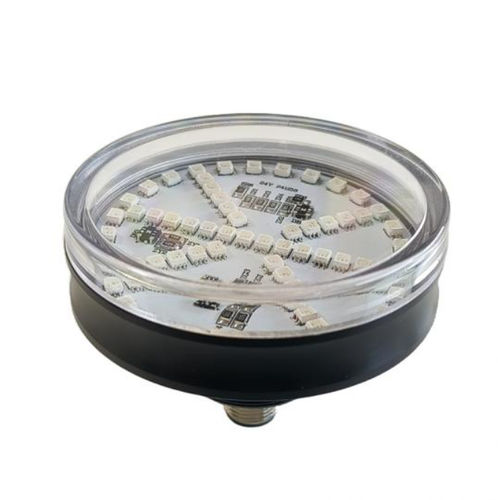

Otennlux O102 is a 100 mm diameter IP69K LED machine indicator for 24 V DC control systems. Available in three colors (Red, Yellow, Green), the epoxy-encapsulated dome provides uniform, glare-minimized illumination for industrial and harsh-environment signaling.

Key features
The 100 mm dome delivers omnidirectional light. Epoxy encapsulation protects electronics from water, oil and dust to meet IP69K rating. Aluminium alloy body with PC cover and durable construction suited to industrial applications. High-performance LEDs provide stable light output and long lifetime.

Product information

• Item no.: O102
• Payment: EXW/FOB/CNF
• Product origin: China
• Shipping port: Guangzhou / Shenzhen / Shanghai
• Lead Time: 5-7 days

Table
Item name: IP69K 100mm machine indicator lights
Ip rate: IP69K
Color: RYG (Red, Yellow, Green)
LED Life: 50,000 hours
Diameter: 100 mm
Material: aluminium alloy + PC cover
Connector: M12 / 0.5 m cable
Accessories: Universal mounting bracket
Voltage: 24 V DC
OEM: Welcome

Certifications & Quality
CE / ROHS / UL / ETL / CCC / Anti-Explosion (available by model). Warranty: 3 years.

Applications
Industrial machine indicator, CNC machine tool signal light, automation systems and harsh-environment signaling.

Technical specifications

• Model: O102
• Diameter: 100 mm
• Ingress protection: IP69K
• Color options: Red, Yellow, Green (RYG)
• LED lifetime: 50,000 hours
• Body material: Aluminium alloy with PC cover
• Connector: M12 or 0.5 m cable (model-dependent)
• Accessories: Universal mounting bracket
• Rated voltage: 24 V DC
• Encapsulation: Epoxy-encapsulated electronics for extreme environment protection
• Typical lead time: 5-7 days
• Warranty: 3 years
