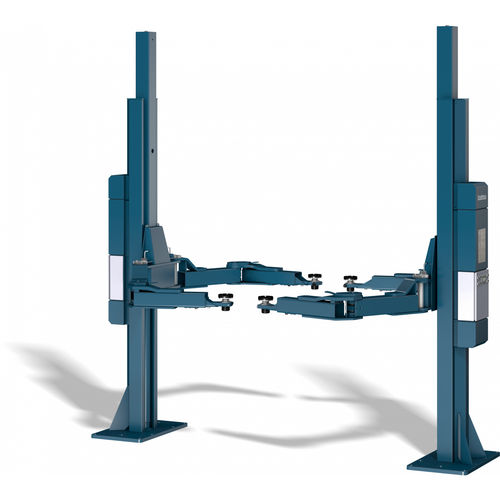

2-post lift POWER HDL 8000 SST DG
hydraulic400 Vfor car

2-post lift
2-post lift
2-post lift
2-post lift
Add to favorites
Compare this product


Characteristics

Type
2 posts
Operation
hydraulic
Voltage
400 V
Applications
for car
Lifting height

Min.: 240 mm
(9.449 in)

Max.: 2,150 mm
(84.646 in)

Minimum height

Min.: 240 mm
(9.45 in)

Max.: 240 mm
(9.45 in)

Lifting time

70 s

Motor power

1.5 kW
(2.04 hp)

Column height

4,419 mm
(173.98 in)

Description

The hydraulic 2-post lift Power Lift HDL 8000 SST DG with a load capacity of 8000 kg and equipped with double jointed arms is a lift with high lifting capacity and flexibility for the versatile automotive workshop, that serves all vehicle types, from smallest cars to large vans. The Power Lift HDL 8000 SST DG is equipped with Nussbaum's patented SST technology. With the symmetrical telescopic double jointed arms you can carry a wide range of vehicle sizes and weight classes from small cars such as Smart up to overlong vans such as Mercedes-Benz Sprinter and VW Crafter with long wheelbase lift. The arms are mounted on roller bearings for comfortable operation and are secured in the set position by a pneumatic locking mechanism. The Power Lift HDL 8000 SST DG offers absolute operating comfort with two operating units (one per column) and two independent hydraulic power packs and can be easily adapted to the needs of the workshop in terms of installation width and height during installation. The Power Lift HDL 8000 SST DG is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg . The easy-to-use double-joint arms on roller bearings reach all the support points specified by the vehicle manufacturers Two operating units, two hydraulic power packs Operating units with clear electronic display Installation width and height are flexible High safety: Mechanical locking at any lifting height Low maintenance (no ropes, no ratchets) Developed and manufactured in Germany Recommended by Mercedes-Benz (for similar lift HDL 2.65 SST DG MB)
