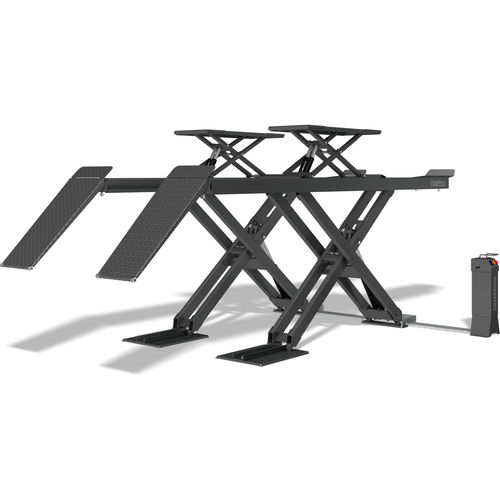

Scissors car lift UNI 3500 NT PLUS
3.5 tonhydraulicfor car

Scissors car lift - UNI 3500 NT PLUS - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
Scissors car lift - UNI 3500 NT PLUS - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
Scissors car lift - UNI 3500 NT PLUS - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 2
Scissors car lift - UNI 3500 NT PLUS - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 3
Scissors car lift - UNI 3500 NT PLUS - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 4
Add to favorites
Compare this product

Characteristics

Type
scissors
Maximum load
3.5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Other characteristics
platform
Lifting height

Min.: 195 mm
(7.677 in)

Max.: 1,920 mm
(75.591 in)

Minimum height

195 mm
(7.68 in)

Lifting time

35 s

Motor power

3 kW
(4.08 hp)

Description

The hydraulic scissor lift UNI LIFT 3500 NT PLUS / ABOVE-GROUND / LED / 4500 MM with a lifting capacity of 3500 kg is the perfect lift for pick-up inspection, diagnosis, tyre service and repairs in the car workshop. With the fast lifting and lowering times, their small space requirement thanks to the low rails and the short ramps, their comfortable Lifting height of mm, the flexible installation width and the integrated hydraulic wheel free jack (RFH) is The UNI LIFT 3500 NT PLUS / ABOVE-GROUND / LED / 4500 MM The perfect equipment for the car repair shop that needs a lifting platform that can meet all the requirements of a modern service company. The wheel-free lift allows free access to the wheels of the vehicle in no time at all. By simply changing a switch on the control column, the operator can switch between the lift of the wheel-free jack and the lift as a whole. The UNI LIFT 3500 NT PLUS / ABOVE-GROUND / LED / 4500 MM can easily be retrofitted with the axle lift JAX 2600, JAX 3200 or JAX 4000 and thus adapts to the development of your workshop for a long time to come.
