Fresnel prism 202666glass
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- Fresnel
- Material
- glass
Description
An interference pattern is created by the shift caused by a prism with a very small angle on an incident homogeneous beam.
Measuring the fringe spacing allows to determine the angle at the apex of the prism.

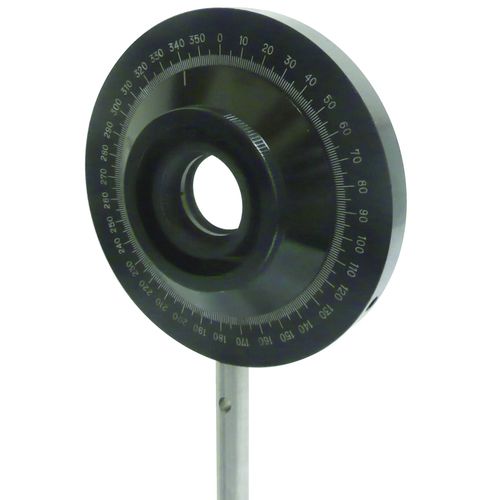

- Dimensions: Ø 100 mm - Useful diameter: 24 mm - Apex angle: 0.6° - Rotation adjustment: with ball bearings - Graduations: engraved every 1° on 360° - Mount: anodized aluminum - Support: rod Ø 10 mm - L 100 mm Delivered in a storage case.
