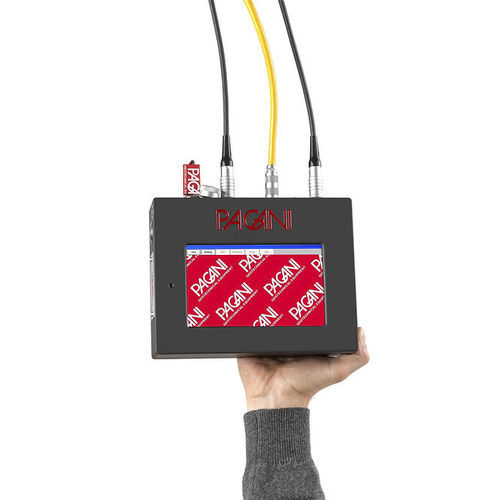

Pressure data-logger CPT-AS

USBwith screenfor monitoring

Compact and practical Extremely compact and robust acquisition system, transported in a practical case and easily installed on the penetrometer. Width: 220 mm Height: 190 mm Depth: 60 mm Speed during tests CPT-AS is a fast and intuitive data-logger, capable of acquiring CPTu test and dissipation test data through a few guided steps and without the need for computers and bulky wiring. Data can then be downloaded using a simple USB key. Video training Always-guaranteed functionality The data-logger is resistant to rain and extreme temperatures, while the touch-screen monitor offers excellent visibility, even in direct sunlight. Operating temperature: -20 ÷ +70 °C Technical information Technical specifications: Supply voltage: 9V DC - 18V DC Typical (maximum) current draw: 0.5 A (1 A) Operating temperature: -20 ÷ +70 °C External connections: Power supply: 12V DC Encoder input: Encoder line-driver USB ports: Encoder line-driver Piezocone input: RS485 serial Dimensions: Length: 220 mm Height: 190 mm Depth: 60 mm
