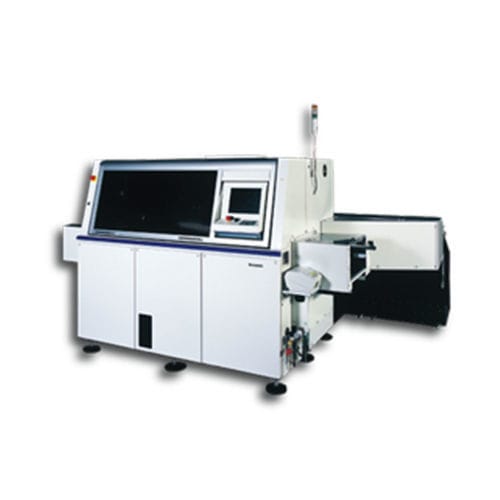

Pin insertion machine RG131

pneumaticmanualfor radial lead components

A high-density radial lead component insertion machine, the RG131 with guide pin system provides stable, high-density insertion at 14,400 cph (0.25s/component). This through-hole machine inserts components with a pitch range of 2.5mm, 5.0mm or 7.5mm and allows for 40 or 80 component inputs - a wide component range in a compact footprint with a low cost of ownership. Full auto-recovery corrects insertion errors while the part exhaust detection system allows for proactive part replenishment and promotes continuous productivity. • 4 insertion directions (0°, 90°, -90°, 180°) • Wide pitch range encompassing 2.5/5.0/7.5 and 10 mm pitch in a common platform - eliminating the need for post insertion manual placements of 10 mm pitch components • Auto-recovery and part exhaust detection • Enhanced programmable T-Clinch technology ensures interference-free insertions by eliminating shorts on underside layout • Wide component range up to 18 mm diameter (ø) PCB Dimensions (mm) - L 50 mm x W 50 mm to L 508 mm x W 381 mm Maximum Speed * - 0.25 s/component to 0.6 s/component [*1] No. of Component Inputs - 40 Applicable Components - Pitch 2.5 mm, 5.0 mm, 7.5 mm, 10.0 mm Height Hn=Max. 26 mm Diameter D=Max. 18 mm Resistor, Electrolytic capacitor, Ceramic capacitor, LED, Transistor, Filter, Resistor network PCB Exchange Time - ~2s to about 4s (Room temperature 20℃) Insertion Direction - 4 directions (0°, 90°, -90°, 180°) Electric Source * - 3-phase AC 200 V, 3.5 kVA [*2] Pneumatic Source - 0.5 MPa, 80 L/min (A.N.R.) Dimensions (mm) - W 3,200 x D 2,417 x H 1,620 [*3]
