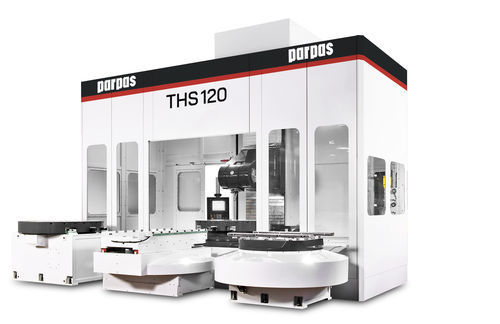

5/6-axis CNC machining center THSuniversalfor steelfor cast iron
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5/6-axis
- Spindle orientation
- universal
- Machined material
- for steel, for cast iron, for stainless steel, for light alloys, for aluminum, for aluminum alloys, for titanium alloys, for composites
- Structure
- column type, with sliding rotary table
- Spindle mount
- ISO 5, HSK-63-A, HSK-100-A, ISO 40
- Associated functions
- milling, drilling, turning
- Applications
- for the automobile industry, for molds, heavy-duty, for the aerospace industry, for gas turbines, for large workpieces, for the aeronautical industry, for cast iron, for generator rotors, for the mold industry, for titanium, for aeronautics, for large-diameter parts, for blisk, for the steel industry, for heavy-duty machining, deep hole, for the aluminum industry, for heavy loads
- Other characteristics
- high-performance, high-productivity, high-power, high-precision, high-rigidity, with automated loading, with automatic tool changer, with integrated pallet changer, all-in-one, high-power
- X travel
Max.: 3,600 mm
(141.73 in)Min.: 1,500 mm
(59.06 in)- Y travel
Max.: 2,000 mm
(78.74 in)Min.: 1,200 mm
(47.24 in)- Z travel
Max.: 2,000 mm
(78.74 in)Min.: 1,200 mm
(47.24 in)- Rotational speed
Max.: 36,000 rpm
(226,195 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 78 kW
(106.05 hp)Min.: 37 kW
(50.31 hp)- Work feed X-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 40,000 mm/min
(26.25 in/s)Min.: 0 mm/min
(0 in/s)
Description
T-structure multi-axis machining centers for maximum rigidity and multitasking configurations
THS 100 and THS 120 are T-structure multi-axis machining centers. This configuration ensures high structural rigidity, high removal performances and excellent working area accessibility. Designed for medium/large parts machining, THS models are characterized for their high-flexibility, thanks to the wide range of available heads and the integration of rotary mill/turn rotary tables. The structure is optimized to reduce vibrations, ensure thermal stability and maintain tolerances also during high-demanding cycles.
THS 100 and THS 120 are T-structure multi-axis machining centers. This configuration ensures high structural rigidity, high removal performances and excellent working area accessibility. Designed for medium/large parts machining, THS models are characterized for their high-flexibility, thanks to the wide range of available heads and the integration of rotary mill/turn rotary tables. The structure is optimized to reduce vibrations, ensure thermal stability and maintain tolerances also during high-demanding cycles.
