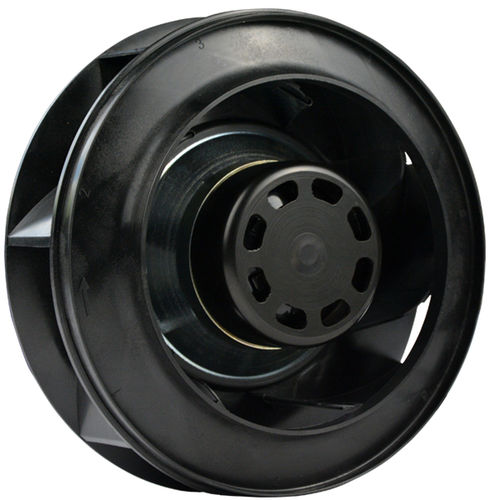

IP55 fan PB3N190B-72-00 seriescentrifugalsuctionventilation
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- suction, ventilation
- Supply voltage
- DC
- Drive mechanism
- brushless motor, EC motor
- Material
- plastic, FRP
- Other characteristics
- high-pressure, IP55, backward curved
- Air flow
721 m³/h, 734 m³/h
(25,461.875 ft³/h, 25,920.965 ft³/h)
Description
Material : Plastic PA66
Motor Type : EC external rotor motor
Operating Temperature : - 25 ℃ ~ + 60 ℃
Protection Class : IP 55
Approvals : CCC ,CE
Insulation Class : B
EC centrifugal fans with backward-curved blades are used primarily for intake suction. Since most of the pressure build-up takes place in the impeller, there is generally no need for a scroll housing. The centrifugal fans have very good hydraulic efficiency and are ideally suited for high pressures. The centrifugal fans are used in applications such as central air conditioning units or building ventilation systems.
This model no. is PB3N190B24/48-72-00. It works with 24V,48V voltage input. Diameter size is 190mm.Total height with motor base is 72.4mm. Impeller material is propylene with propylene witn glass-fiber reinforced.
