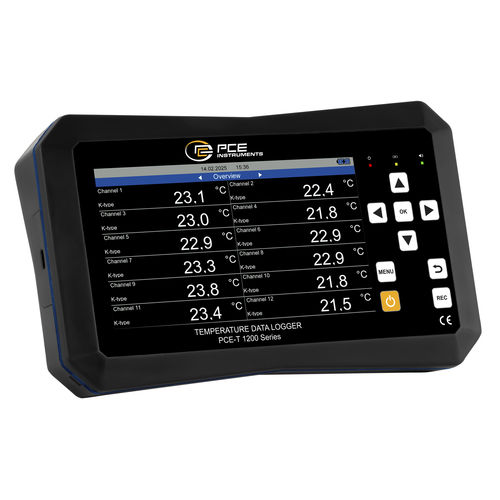

Thermocouple thermometer PCE-T 1220

digitalhigh-temperature

Temperature Meter for thermocouples / 12 channels for various thermocouples / High accuracy / /Data memory for 10 million measured values / Alarm limit values / Various display options / 7" LCD display With the Temperature Meter, the measured values of several temperature sensors can be recorded, displayed and archived simultaneously. It supports eight different thermocouple types (K, J, E, T, N, S, R, B), which can be connected to the 12 measuring channels. The large measuring range of -200 ... 1800°C / -328 ... 3272°F makes the Temperature Meter ideal for a wide range of applications - from cryogenic temperatures to high-temperature processes. Particularly noteworthy is the high measuring accuracy, especially with type K thermocouples with ±(0.04% of the mean value + 0.3 K). The measured values of the Temperature Meter are displayed on a large 7-inch display, which provides a clear and easy-to-read visualization of all 12 measured temperatures. In addition, the maximum, minimum and average values since the start of measurement can be displayed in a separate view. Each channel can be individually compared with the other channels, whereby the current measured value and the difference to a selected reference channel are displayed. Another highlight of the Temperature Meter is the long battery life: with a measuring interval of 10 minutes, the data logger lasts up to 24 days in battery mode. In addition, an integrated screen saver ensures energy-efficient use by automatically switching off the display after a defined time without interrupting the measurements.
