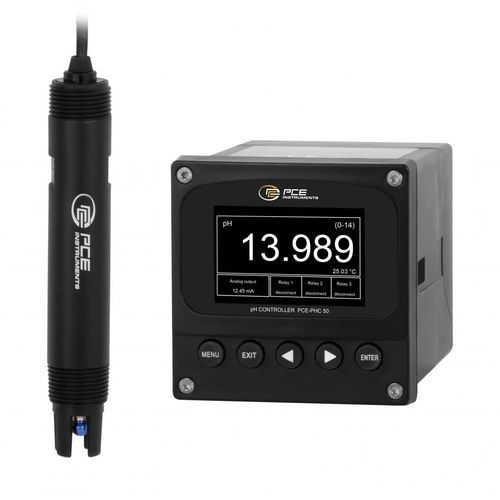

Fixed pH meter PCE-PHC 50

waterprocesswith automatic temperature compensation

Description
The pH tester / pH meter is an industrial measurement system for continuous monitoring and control of pH in liquids. With a durable design and integrated temperature compensation, the device provides precise and stable readings under demanding conditions. Measurement is performed with a high-quality glass electrode combined with a reference electrode. Measuring range pH 0 to 14, resolution 0.001 pH, accuracy ±0.1 pH. The system features a 3-inch TFT color display showing readings, status indicators and settings. Operation is via a keypad with menu navigation. Operating modes: measurement, calibration and data storage. Calibration can be single- or two-point. Real-time temperature compensation ensures accurate values at varying temperatures. For integration into industrial control systems, the unit offers two 4 ... 20 mA analog outputs, three relay outputs (SPDT, 250 V AC/30 V DC, max. 5 A) and an RS485 interface with Modbus-RTU. Measurement and calibration data can be stored and recalled via the display. Enclosure rating IP55, sensor rating IP68. Typical applications: wastewater quality monitoring, industrial process control, drinking water monitoring, surface and groundwater measurement.

Features

• pH controller with integrated temperature sensor
• 3-inch TFT color display 800 x 480 pixels
• 2 x 4 ... 20 mA analog outputs
• 3 relay outputs (SPDT, max. 5 A)
• RS485 interface (Modbus RTU)
• Automatic temperature compensation
• Storage of measurement and calibration data
• Protection rating IP68 (sensor), IP55 (controller)
• Adjustable alarm

Specification
pH - Measuring range: 0 ... 14 pH
pH - Resolution: 0,001 pH
pH - Accuracy: ±0,1 pH
Electrode - Measuring range: 0 ... 14 pH
Electrode - Temperature range: 0 ... 60 °C
Application: aqueous non-corrosive media
Shaft material: polypropylene
Diaphragm material: glass
Shaft length: 20 mm
Shaft diameter: 27 mm
Min. immersion depth: 20 mm
Cable length: 9.5 m
Connection: electrical via terminal strip, mechanical via 3/4 inch NPT thread
Dimensions (sensor): length 160 mm, diameter 27 mm
Temperature sensor - Measuring range: 0 ... 60 °C
Temperature sensor - Resolution: 0,01 °C
Temperature sensor - Accuracy: ±1 °C
General technical data - Outputs: SPDT relays 250 VAC / 30 VDC / max. 5 A, 4 ... 20 mA
Outputs (additional): 3 x SPDT relays, 2 x analog output 4 ... 20 mA (max. load 500 Ohm)
Display type: TFT color display
Display size: 3 inch
Display resolution: 800x480
Memory capacity: 229248 values
Storage interval from: 1 min.
Storage interval to: 60 min.
Interface: RS485
Response time: 10 s
Alarm modes: below, above
Panel cutout: 92 x 92 mm
Calibration: cycle: approx. 3 months (depending on medium)
Drift: pH value: less than ±0,1
Menu language: English (GB), English (US)
Protection class (device): IP55
Power supply: 85 ... 265 V AC
Plug type: Euro plug
Operating conditions: -10 ... 60 °C, 10 ... 90 % r. H.
Storage conditions: -20 ... 70 °C, 10 ... 90 % r. H.
Dimensions (device L x W x D): 98 x 98 x 120 mm
Weight: 445 g

Scope of delivery

• 1 x pH tester / pH meter PCE-PHC 50
• 1 x pH sensor with temperature compensation
• 1 x mounting kit
• 1 x user manual

Characteristics / Technical specifications

• Model: PCE-PHC 50
• pH measuring range: 0–14 pH
• pH resolution: 0,001 pH
• pH accuracy: ±0,1 pH
• Sensor temperature range: 0–60 °C
• Temperature resolution: 0,01 °C
• Temperature accuracy: ±1 °C
• Analog outputs: 2 x 4–20 mA
• Relay outputs: 3 x SPDT (max. 5 A)
• Interface: RS485 (Modbus RTU)
• Display: 3" TFT, 800 x 480 px
• Memory capacity: 229248 values
• Protection rating: Controller IP55, Sensor IP68
• Power supply: 85–265 V AC
• Device dimensions: 98 x 98 x 120 mm
• Weight: 445 g
