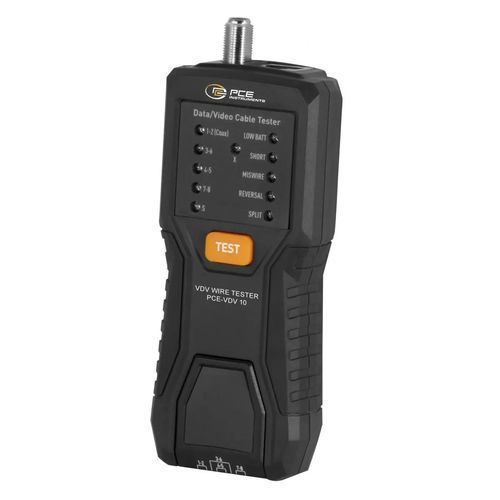

Network tester PCE-VDV 10

networkLAN networkEthernet network

Overview
The PCE-VDV 10 is a portable network tester for diagnosing faults in network and coaxial cables. It is a two-part system with a main unit and a remote unit that enables testing of permanently installed cabling. The tester supports shielded and unshielded twisted-pair cables (Cat 3 to Cat 7A) and coaxial cables used in TV, antenna and surveillance systems.

Function and use
The tester performs continuity checks on individual conductors (pins 1…8), wiring verification to confirm correct pair assignment, and detection of short circuits, miswires, reversals and split-pair faults. Shield integrity of shielded cables is also tested. Test range extends up to 305 m; minimum cable length for split-pair detection is approx. 0.5 m. Test signals are exchanged between the main unit and the remote. Results are displayed via LED indicators: steady LEDs indicate correct wiring, blinking LEDs indicate faults. Status LEDs identify fault type (short, miswire, reversal, split pair). Typical applications include network installation, building cabling and IT/communications installations for electricians, network technicians and service engineers.

Features

• Supports shielded and unshielded cables (Cat 3–Cat 7A, coax)
• LED indicators for status and fault diagnosis
• Maximum cable resistance: 100 Ω DC
• Maximum cable length: up to 305 m
• Continuity test
• Wiring test
• Short-circuit detection
• Pair testing
• Shielding test

Specifications
General technical data:
Measurement functions: continuity, wiring, short-circuit, pair testing, shielding test
Connectors: RJ45, F-connector
Cable types: Coaxial; Cat 3; Cat 5; Cat 5e; Cat 6; Cat 6A; Cat 7; Cat 7A
Max. input voltage: 60 V DC / 55 V AC
Protection class (device): IP20
Power supply: batteries
Battery: 2 x 1.5 V AAA alkaline-manganese
Capacity: 1270 mAh
Operating conditions: 0 ... 50 °C, 10 ... 90 % RH (non-condensing)
Storage conditions: -20 ... 60 °C, 10 ... 90 % RH (non-condensing)
Dimensions (L x W x H): 55 x 28 x 140 mm
Weight: 119 g

Package contents

• 1 x Network tester PCE-VDV 10
• 1 x Coax adapter (black)
• 1 x Coax patch cable (black)
• 2 x Data patch cables 15 cm (red)
• 2 x AAA 1.5 V batteries
• 1 x User manual

Technical characteristics

• Device type: portable network tester with remote unit
• Supported cable categories: Cat 3 - Cat 7A and coax
• Test methods: continuity, wiring, pair testing, short-circuit, shielding test
• Connectors: RJ45 and F-connector
• Maximum cable length: 305 m; minimum length for split-pair detection: approx. 0.5 m
• Maximum cable resistance: 100 Ω DC
• Display: LED indicators for status and fault types (short, miswire, reversal, split pair)
• Power supply: 2 x 1.5 V AAA batteries (alkaline-manganese)
• Battery capacity: 1270 mAh
• Protection class: IP20
• Operating/storage conditions: 0 ... 50 °C (operation), -20 ... 60 °C (storage); 10 ... 90 % RH (non-condensing)
• Dimensions / weight: 55 x 28 x 140 mm / 119 g
